Sold
General Specifications

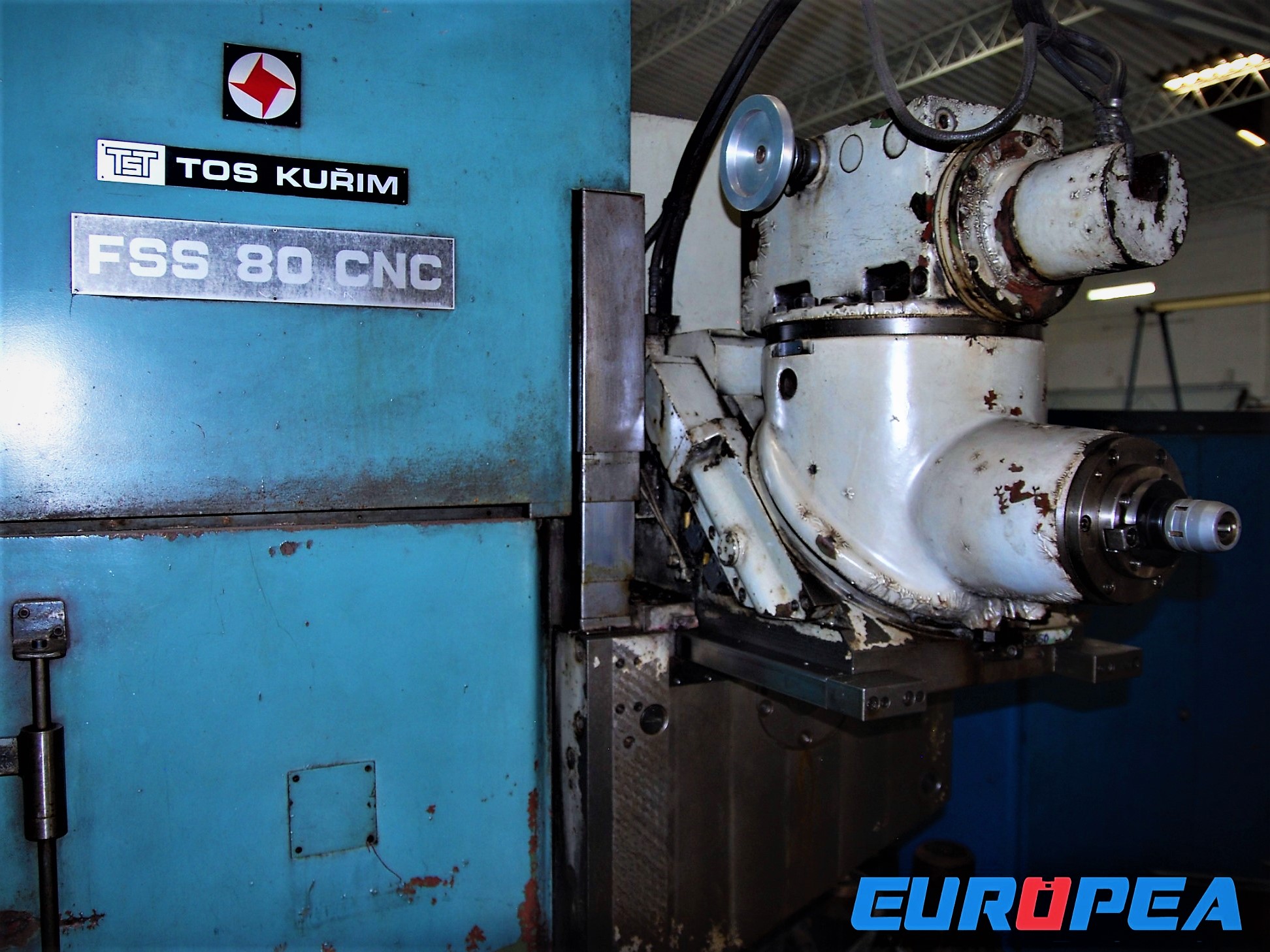

- UNIVERSAL ROTATING HEAD : -
- Vertical Spindle Head turn able : 90 Degree
- : -
- Table : 3000 x 800 mm
- X - Axis : 3000 mm
- Y -Axis : 800 mm
- Z - Axis : 800 mm
- Max. WorkPeice Weight : 2500 Kg
- Spindle : ISO 50
- Spindle Speed : 2000 rev / min
- : -
Product Info

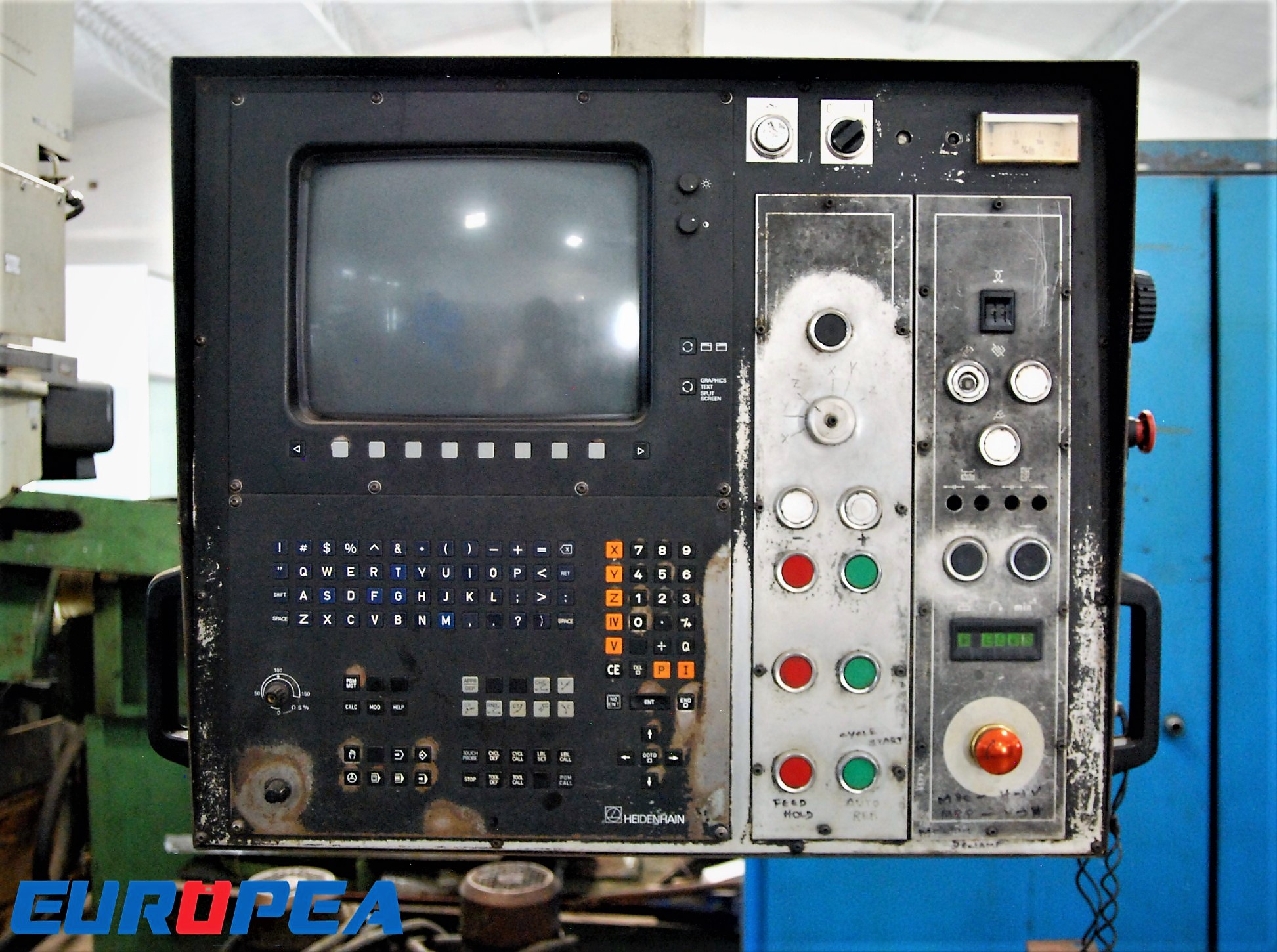

- SYSTEM - HEIDENHAIN TNC - 355 (Upgraded to TNC - 426 (1996))
- Total Power - 40 Kva
- Total Length - 5660 mm
- Total Width - 3500 mm
- Total Height - 3000 mm
- Total Net Weight - 17500 Kg
- Equipped with Manual Books, Hydraulic Power Pack and other Accessories
