Sold
General Specifications
- X – Axis Travel : 1310 mm
- Z – Axis Travel : 370 mm

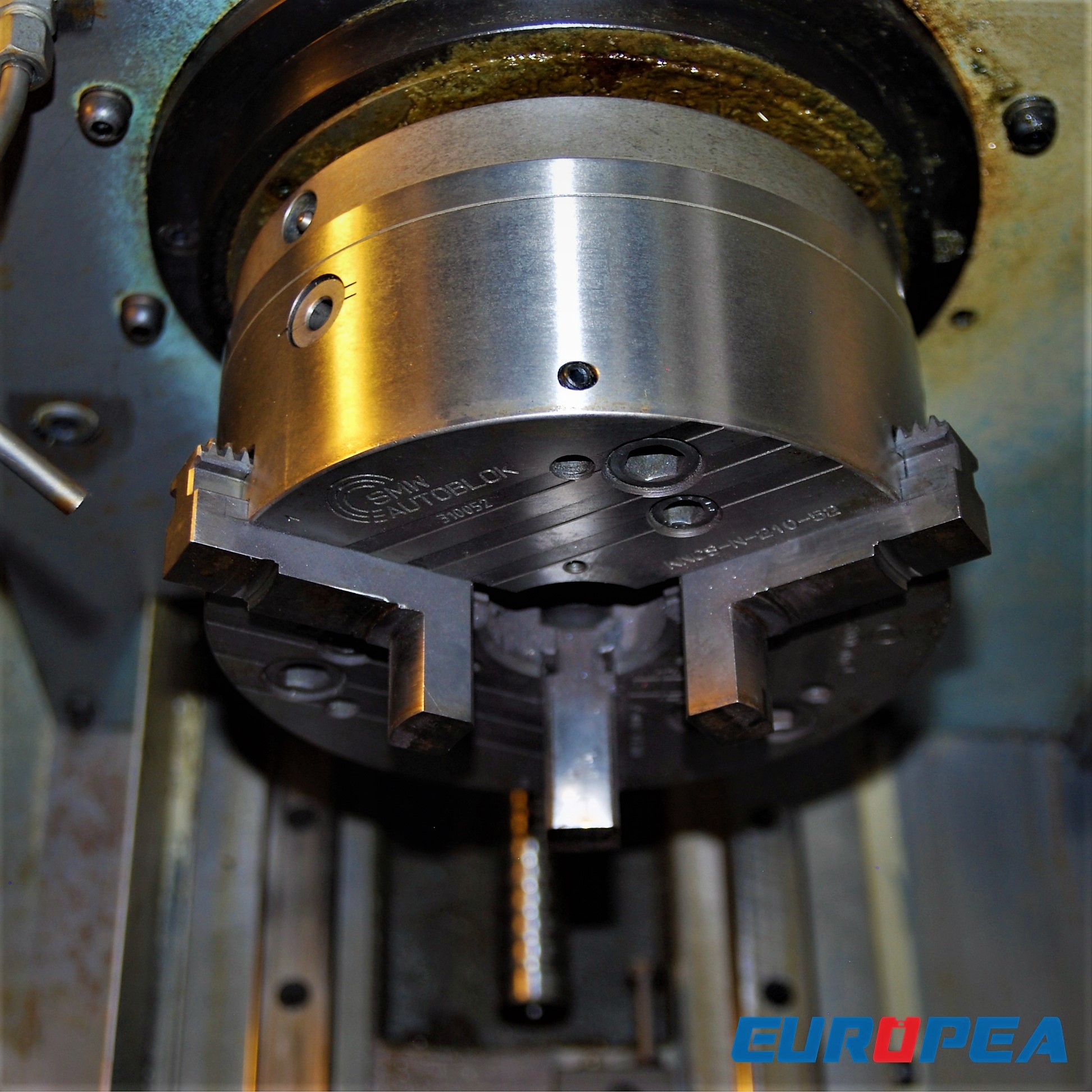

- Chuck outer Diameter : 210 mm
- Max. Machining Diameter : 400mm
- Spindle Speed : 30-5000 min-1
- Spindle Nose : A2-6
- Spindle Through Hole : Dia 59 mm

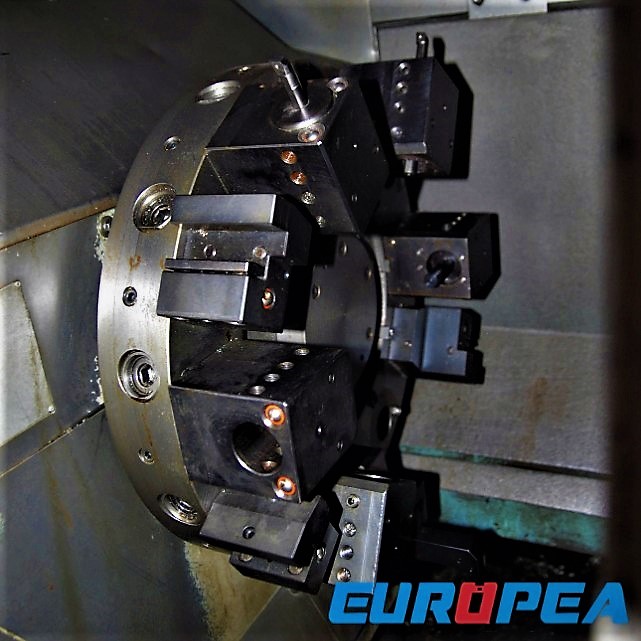

- Turret Type : VDI Rotating Turret
- No. Of Tools : 12 Tools
- Rapid transverse (X & Y) : 30m min (1181 inmin)
- : -
Product Info

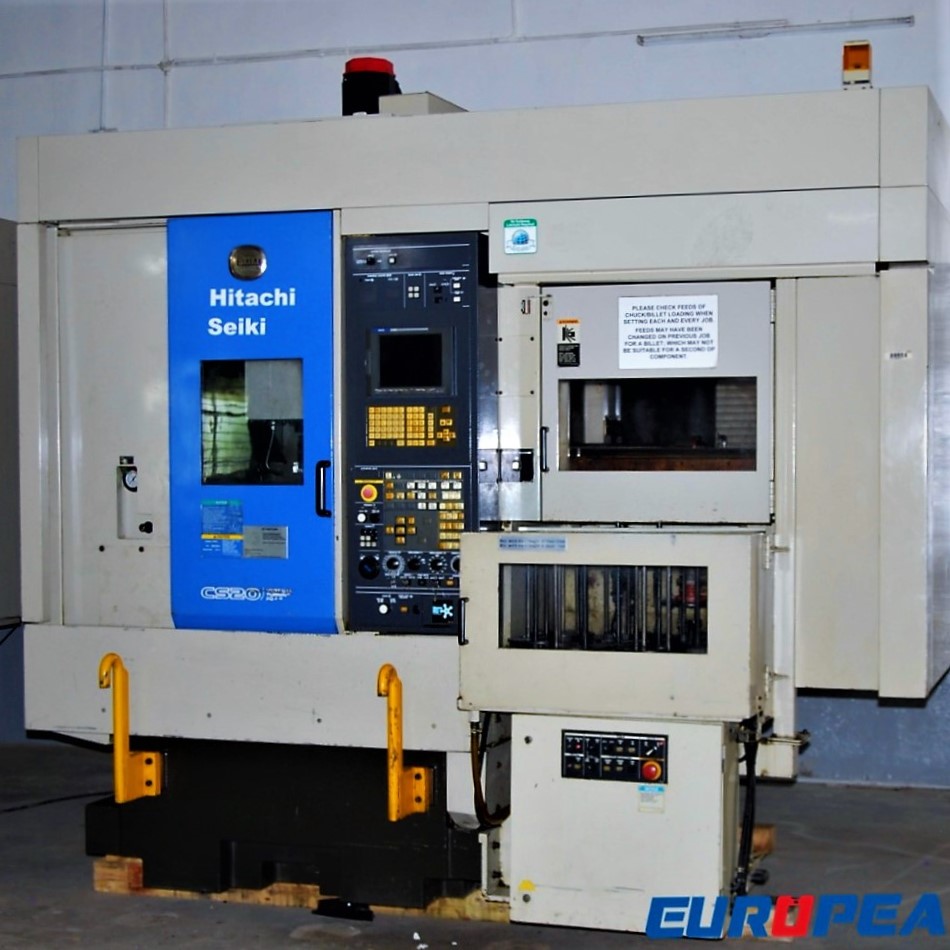

- Inverted Head Turning Center

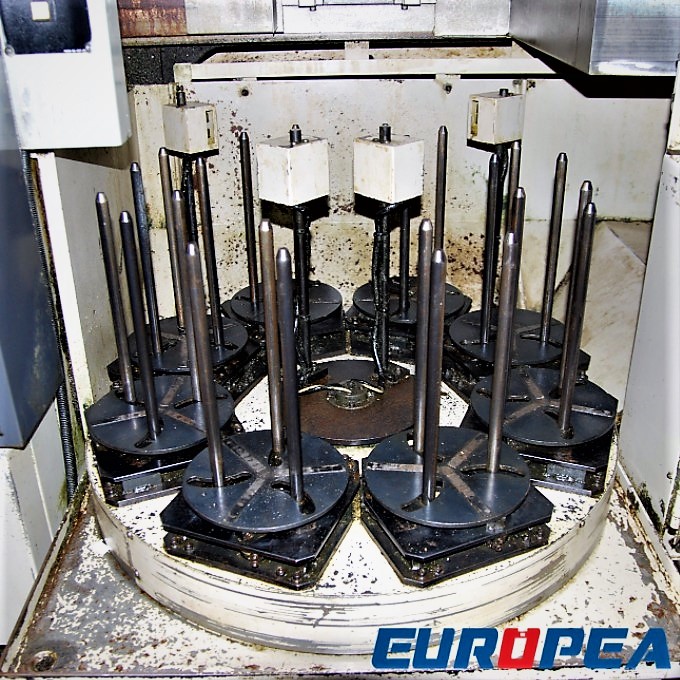

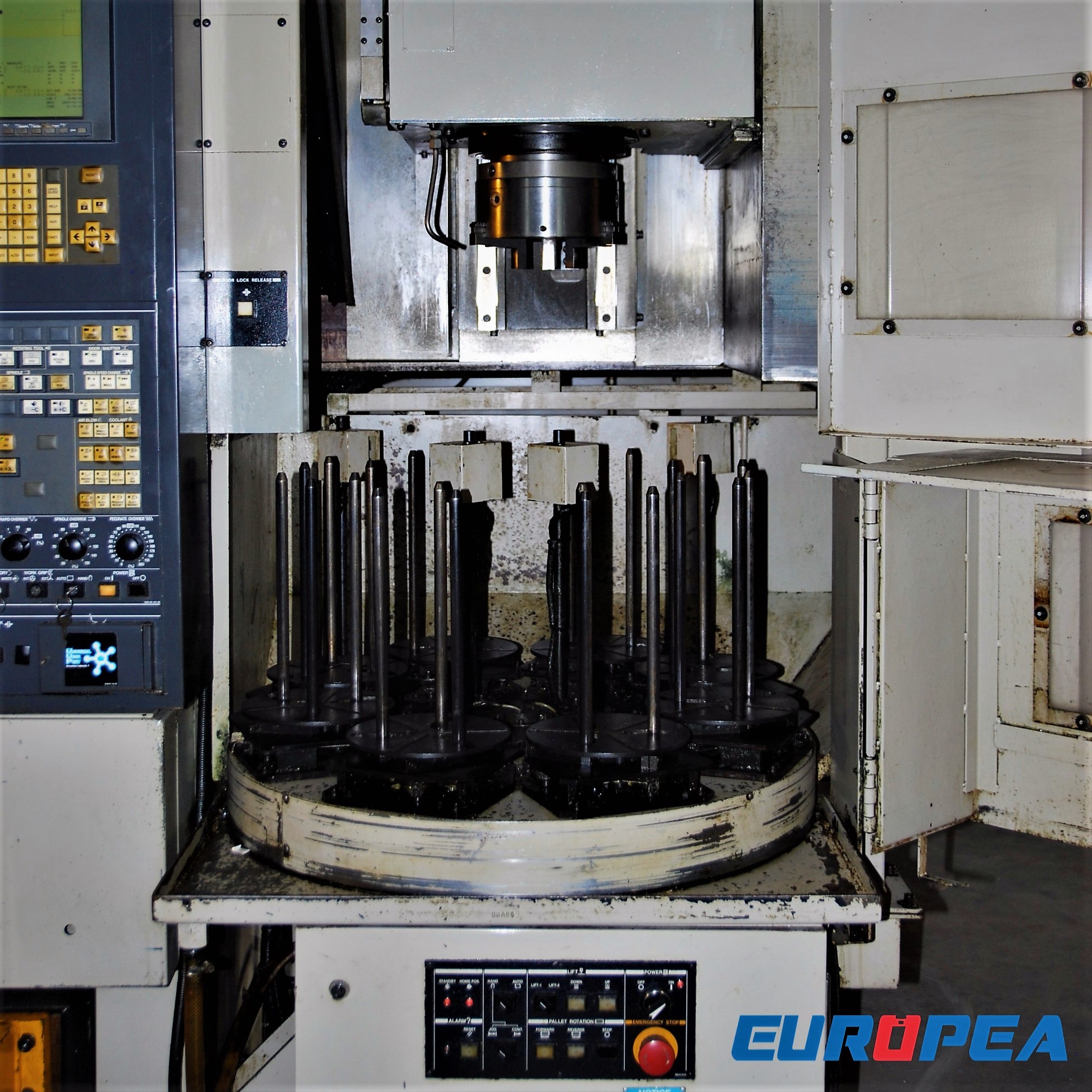

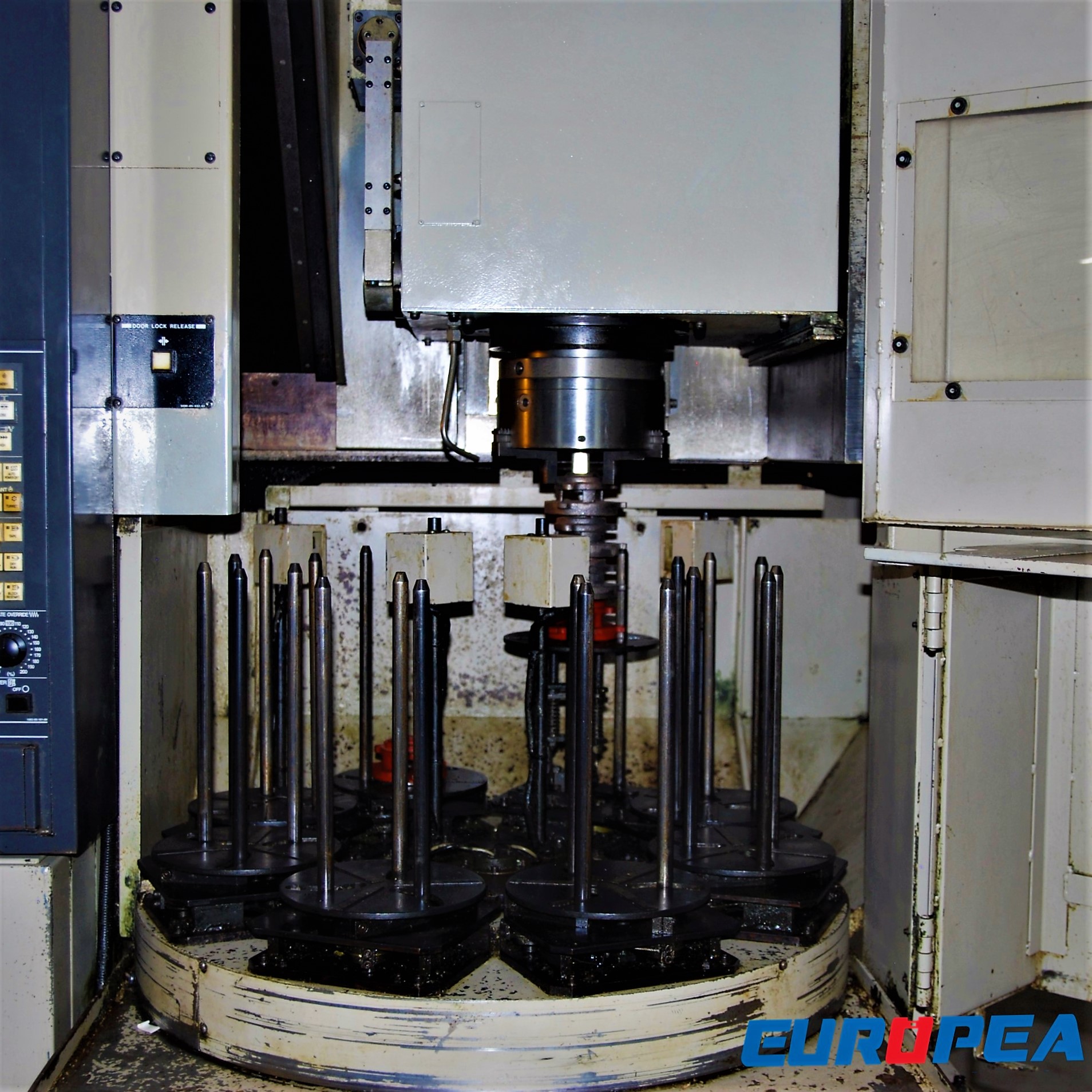

- With Auto Loading & Unloading Component Stack Option
- Equipped with Coolant tank, Manual Books and Jaws

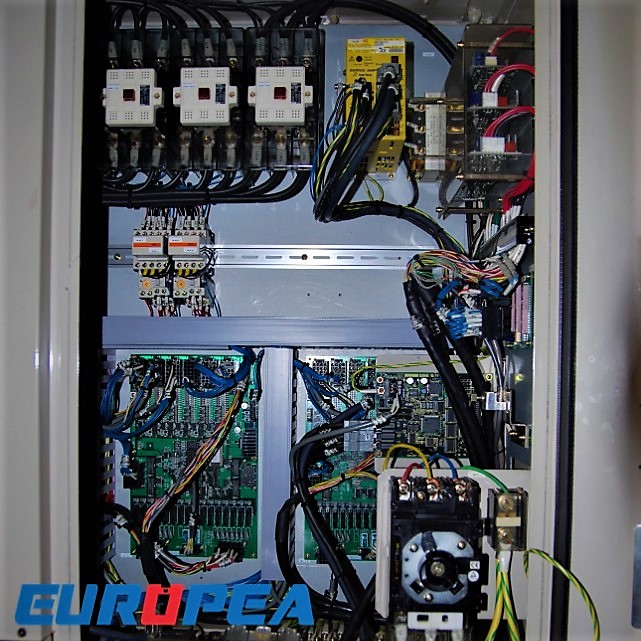

- Power supply - 23kVA
- Pneumatic Source Pressure - 0.5 Mpa
- Pneumatic Rate Flow - 150 L/min
