Sold
General Specifications
- No. of controlled Axes : 2
- Swing over bed : Dia 450 mm
- Max. turning Diameter X length : Dia 270 X 280 mm
- Spindle Nose : JIS A2 - 6
- Spindle Speed : 75 to 3000 RPM
- X Axis Travel : 155 mm
- Z Axis travel : 320 mm

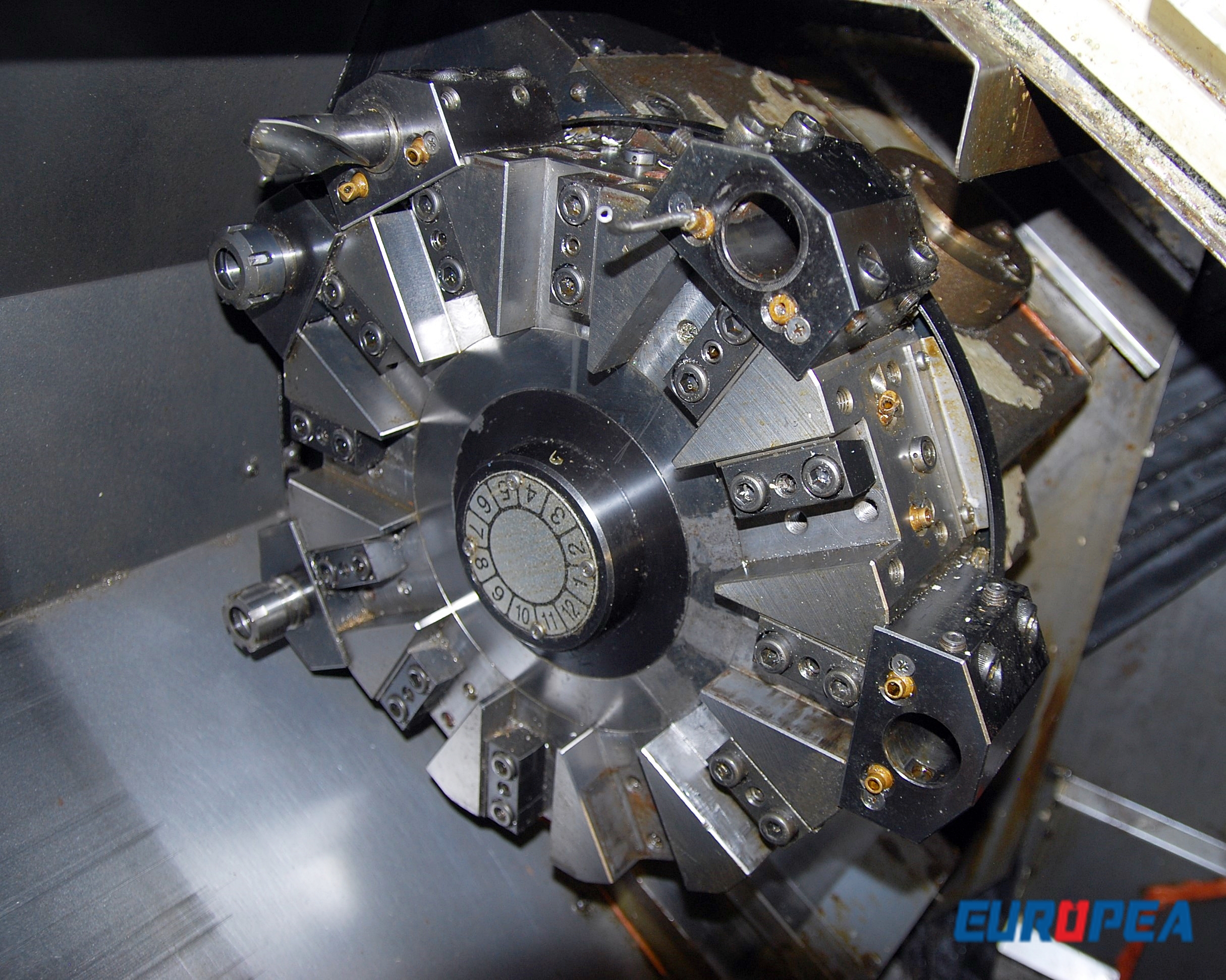

- No. of Tools : 12 Nos
Product Info

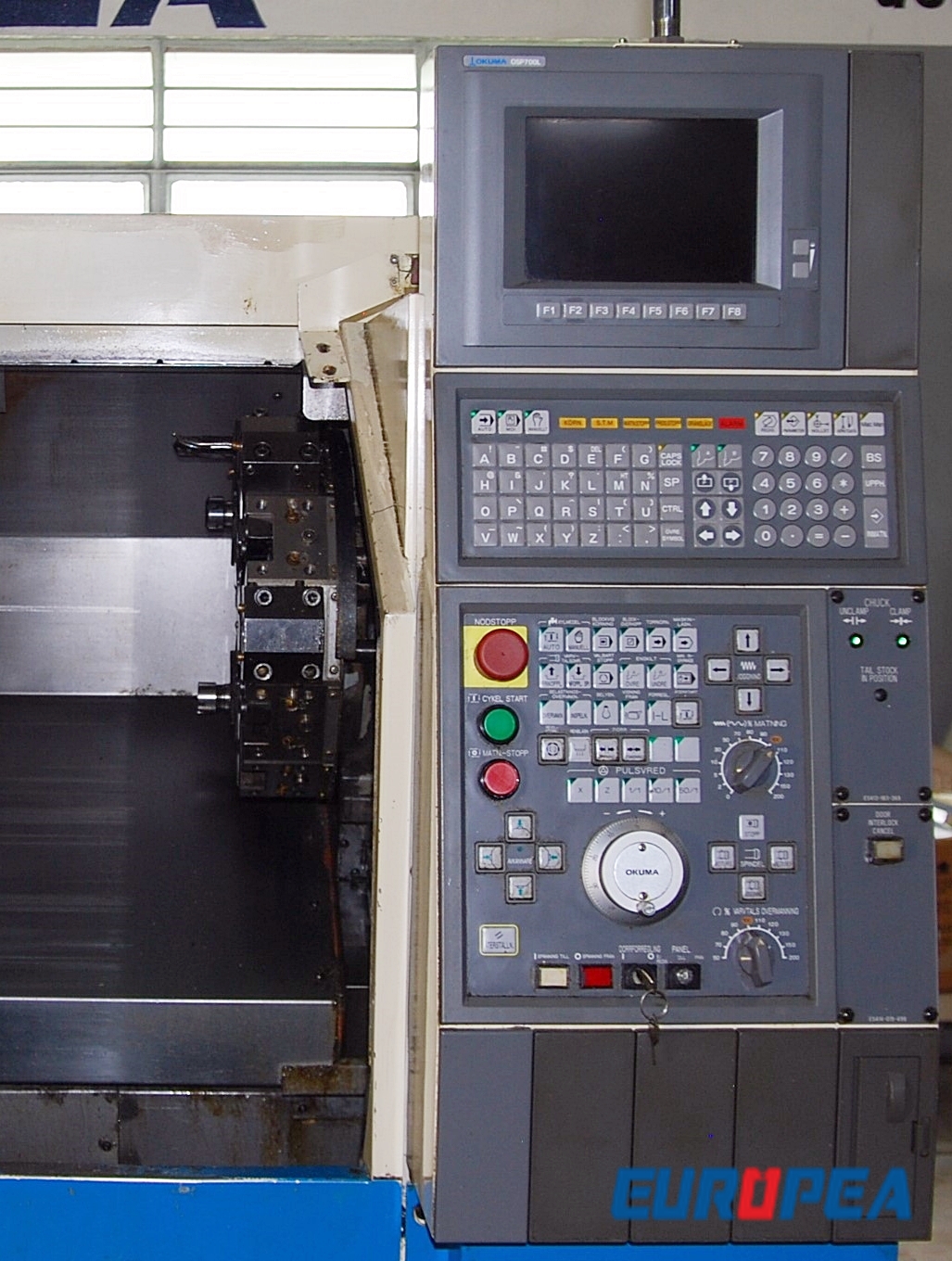

- Controller - OSP700L

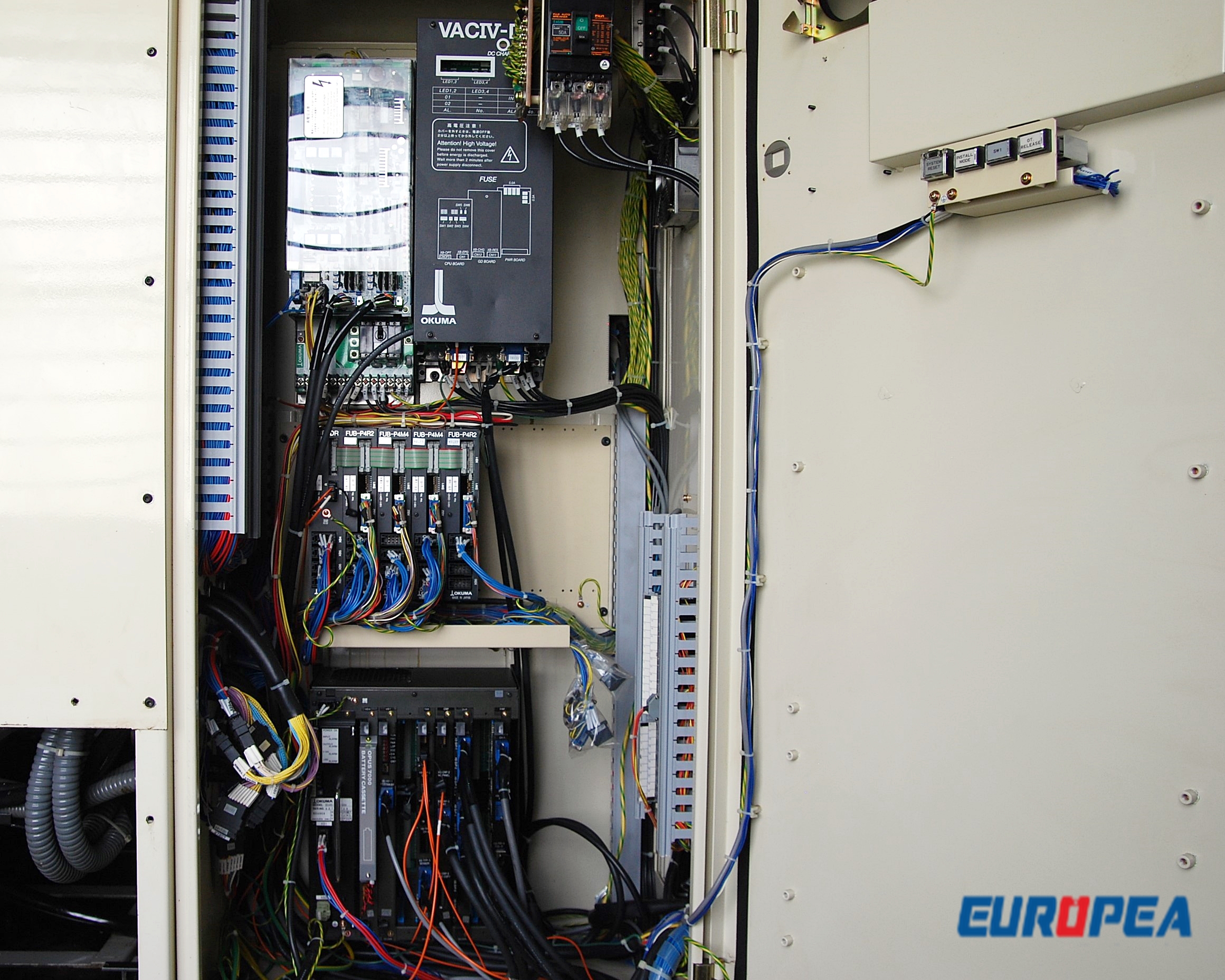

- Spindle Motor Drive - VAC 7.5/5.5 (30 min / Cont.) kW

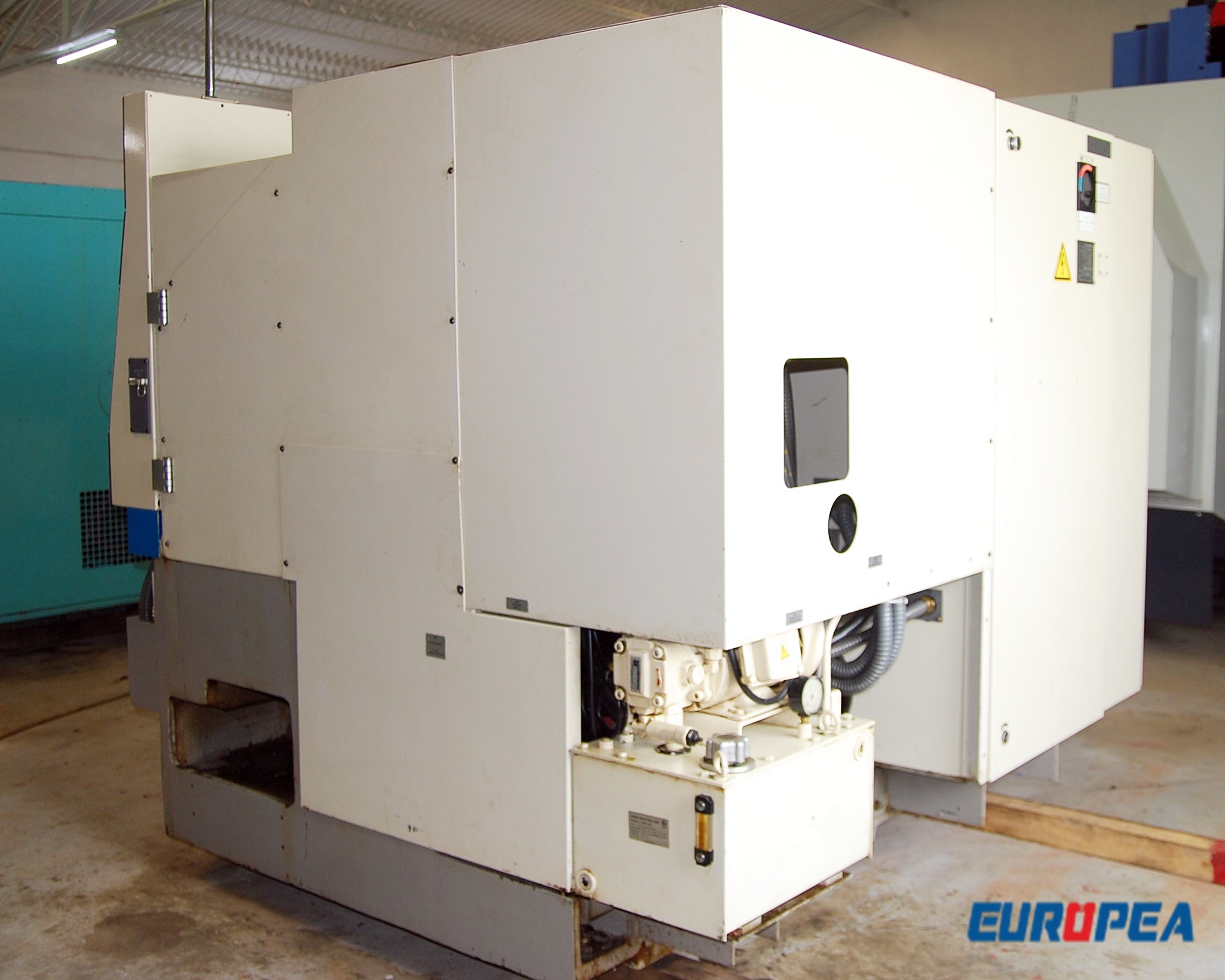

- hydraulic Power Unit Pump - 1.5kW
- Coolant pump - 0.25kW
- Machine Height - 1610 mm
- Floor Space Required - 1520 X 1630 mm
- Net Weight - 2800 Kg
- Equipped with Coolant tank, Chip Conveyor, Manual Books, Base Plates and other Accessories.
