GILDEMISTER | MF TWIN 300 | TURN MILL | No
Turning Center

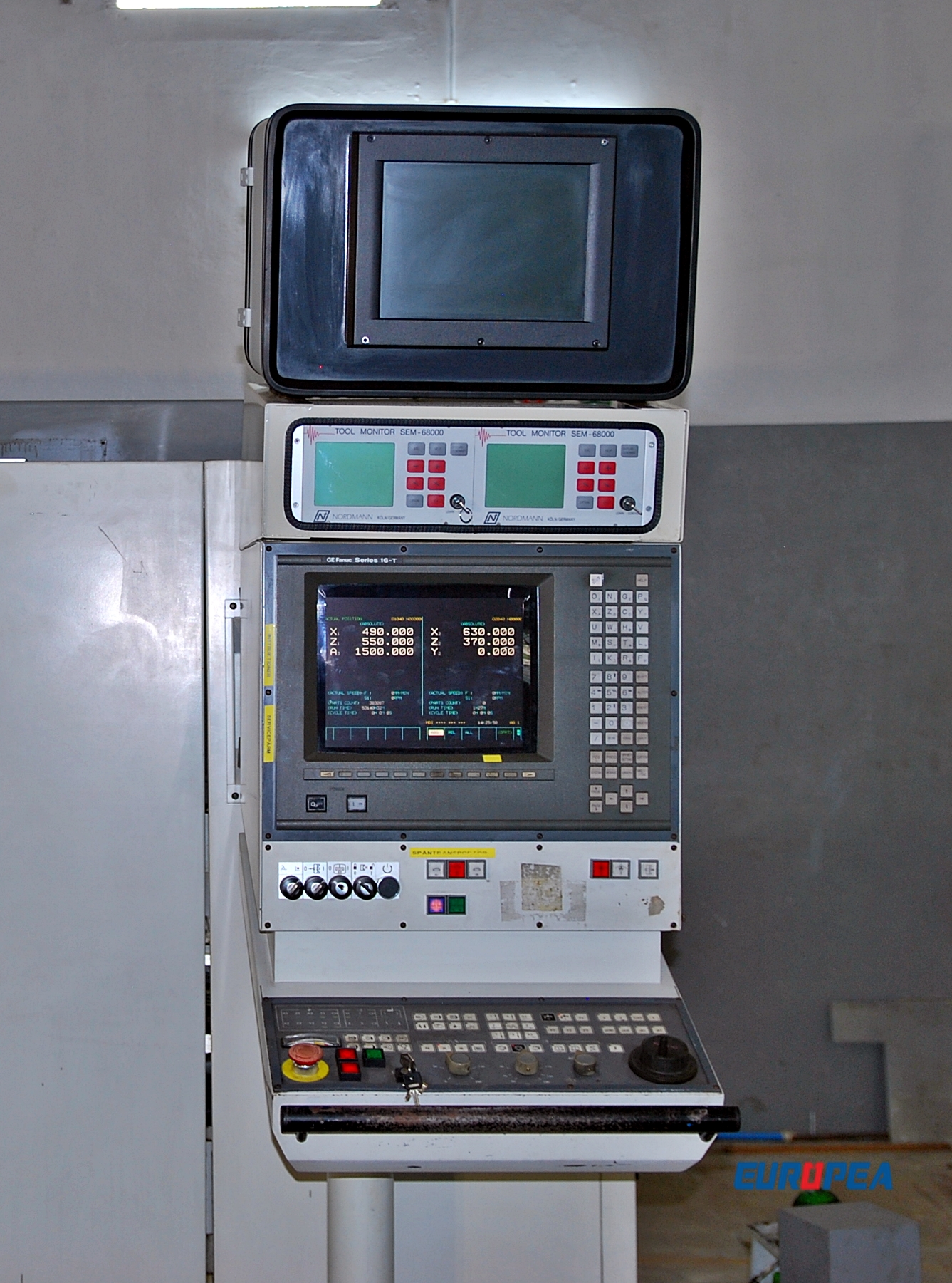

Control : FANUC 16T
Year : 1996
Enquire Now
General Specifications
- Max. Turning Length (Z-Axis) : 42.5 in
- Max. Turning Diameter Over the bed : 12.6 in
- Max Turning Diameter Over the Cross Slide : 9.8 in
- X-Axis Max Travel length : 7.8 in
- Max. Main Spindle power : 33.5 HP
- Diameter of the Spindle Bore : 3.1 in
- Max. Rotary speed of the Main Spindle : 4000 RPM

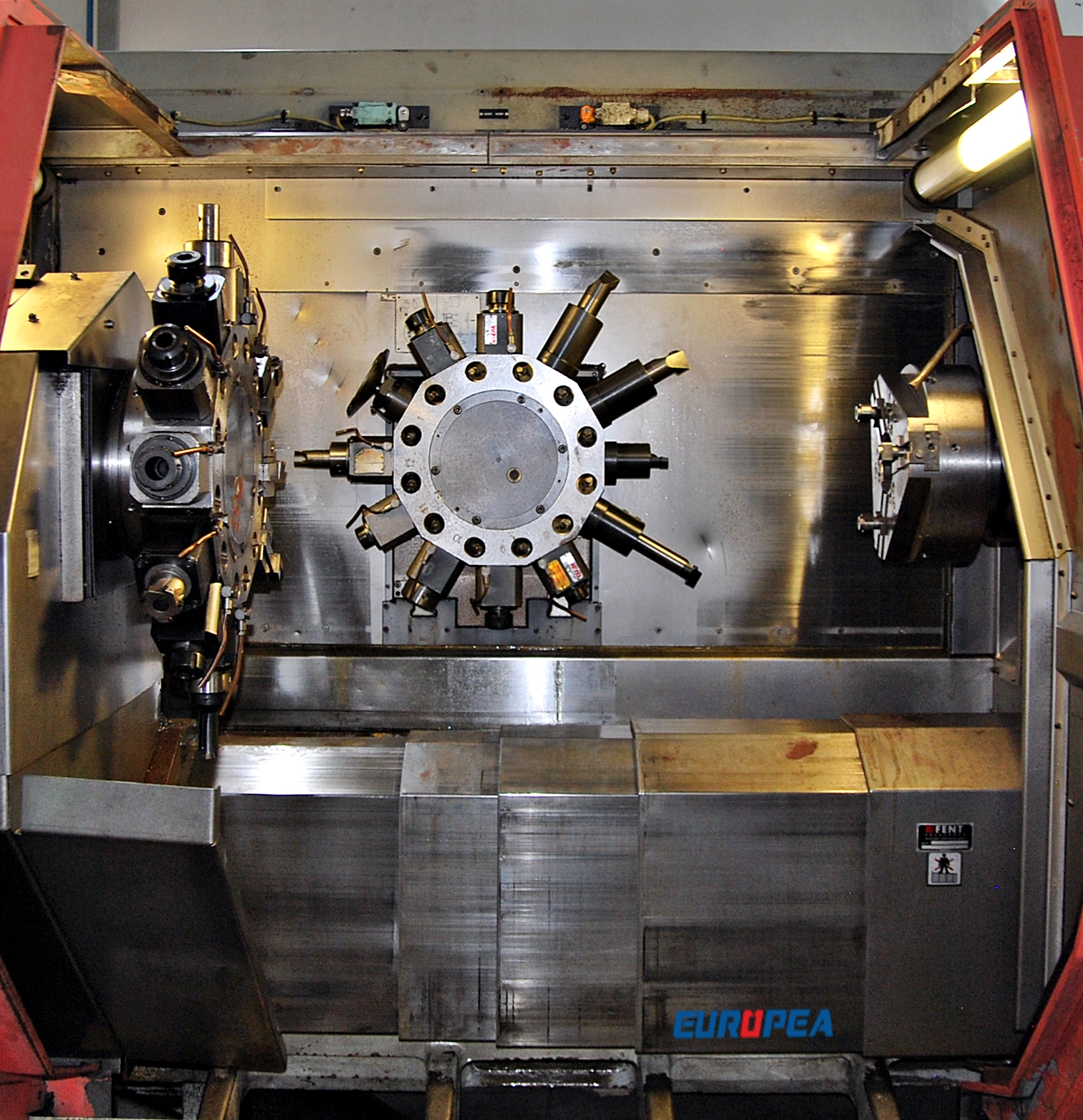

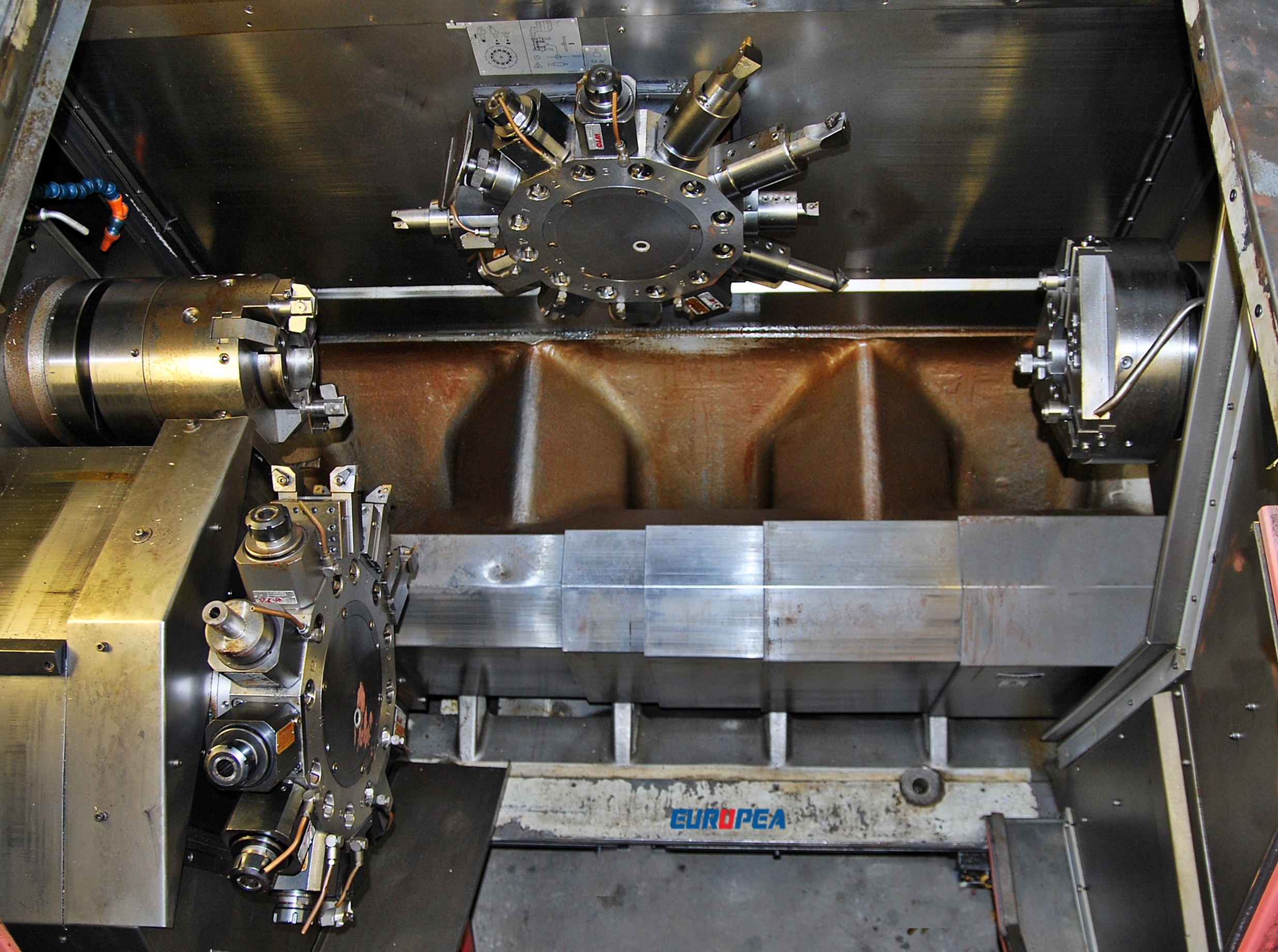

- No of Tool Turret : 2 Nos
- No of Tools in Each Turret : 12 Nos
- : -
Product Info
- TURN MILL CENTER Equipped with
- 1. Chip Conveyor & Coolant Tank
- 2. Paper Filtration Unit
- 3. Leveling Pads

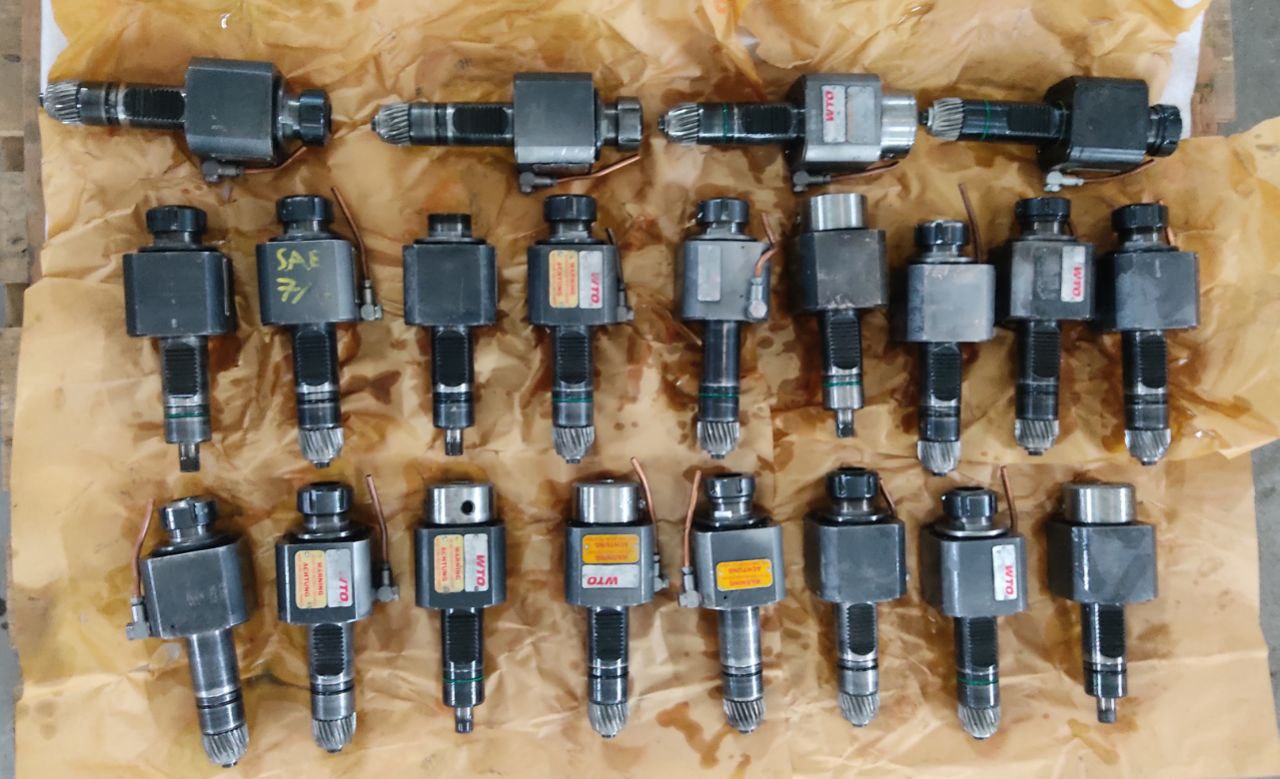

- 4. Tool Holders
- 5. Extra Chucks & Jaws
- 6. Manual Books
MACHINE DIMENTIONS
- Machine Length - 232.3 In
- Machine width - 91.7 In
- Machine Height - 78.7 In
- Machine weight - 13.2 short tons
