Available
General Specifications
- Table Size : 630 X 630 Mm
- Max. Load Capacity : 1
- Max. Working Size : Ø 930 X H1
- Table Indexing Time : 4 Sec
- Min. Indexing Angle : 1º (0.001º)
- : -

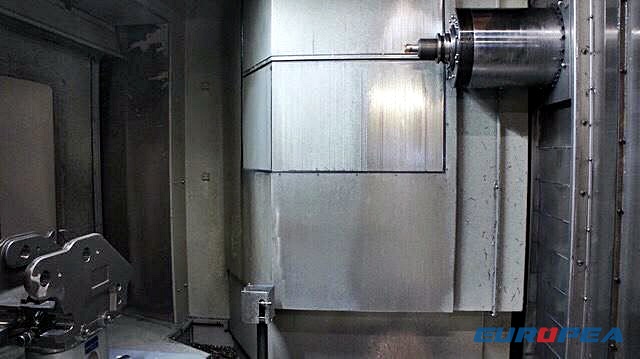

- SPINDLE : -
- Spindle Taper : BT 50
- Spindle RPM : 8000 RPM
- Spindle Power Output Max/Cont : 22/18.5 Kw
- Spindle Driving Method : 2 Steps gear (Built in)
- ATC : -
- NO. of tools : 40 [ 60/ 90 / 120]
- Tool Type : BT 50 [BIG PLUS]
- Max. Tool Dia (without adjacent tool) : Ø 125 / Ø245 Mm
- Max. Tool length : 500 Kg
- Max. Tool Weight : 15 (33)
- Tool Section Method : Fixed address
- Tool Change Time : 2.6 / 7 Sec
- APC : -
- No of Pallet : 2 pallet
- APC type : Direct turn
- Pallet Change Time : 12 Sec
- : -
Product Info
- POWER SOURCE
- Required Power Capacity (220V/60HZ) - 53 (60) KVA
- Air Consuption rate - 5 (71) kgf/cm2 (psi)
- CUTTING OIL
- Tank Capacity - 800 (211.3) L (gal)
- hydraulic Tank Capacity - 60 (15.9) L (gal)

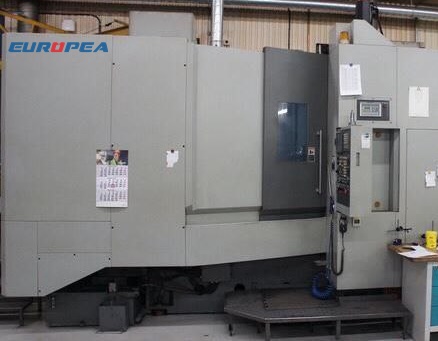

MACHINE DIMENSION
- Floor Space (L X W) - 3,725 X 5,913 MM
- Height - 3,525 MM
- Weight - 23,000 kg
Equipped with
- 1. Coolant Tank 800 L
- 2. Std. Coolant System
- 3. Leveling Pads
- 4. Work Light
- 5. Manual Books
- 6. Chip Conveyor
