Available

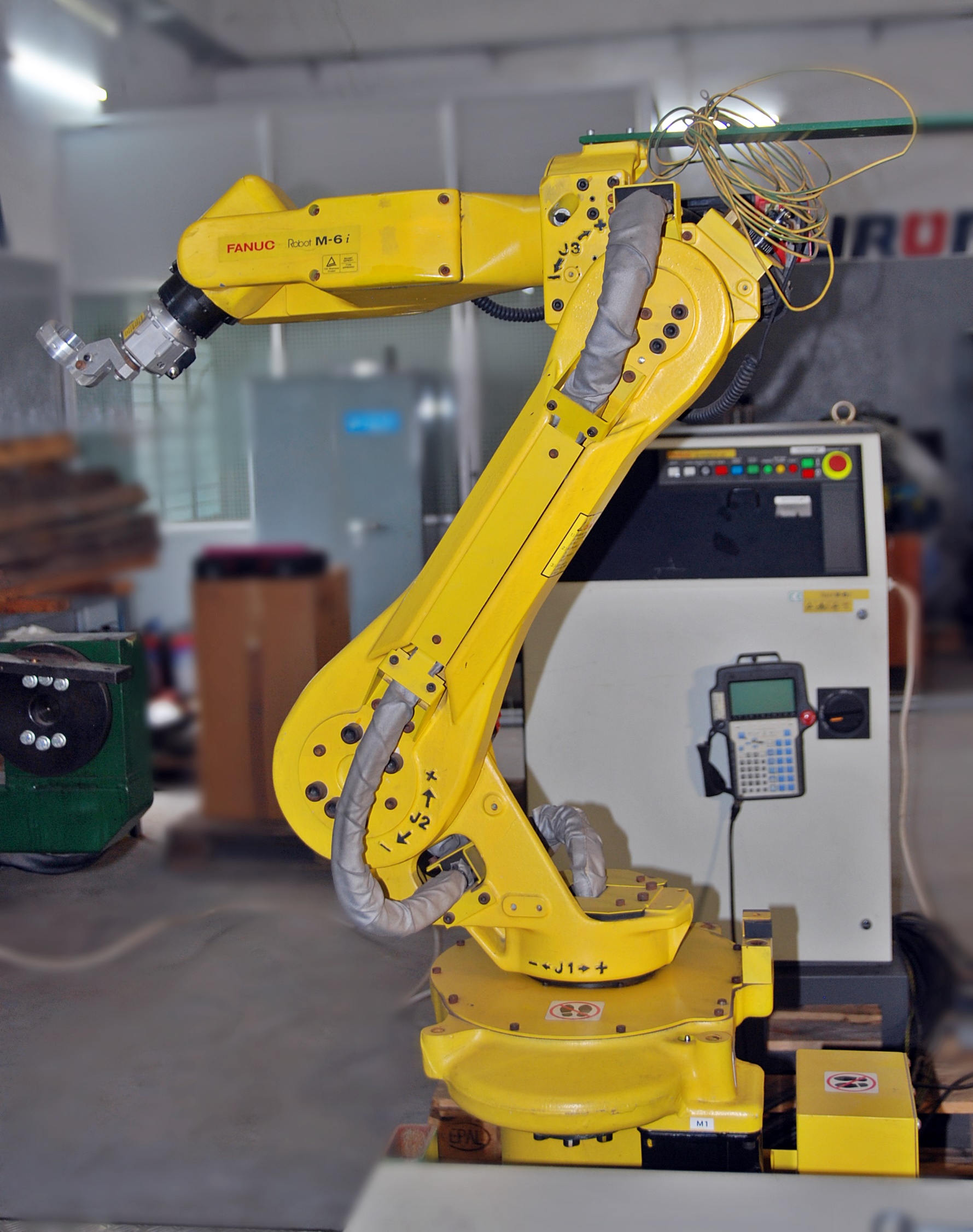

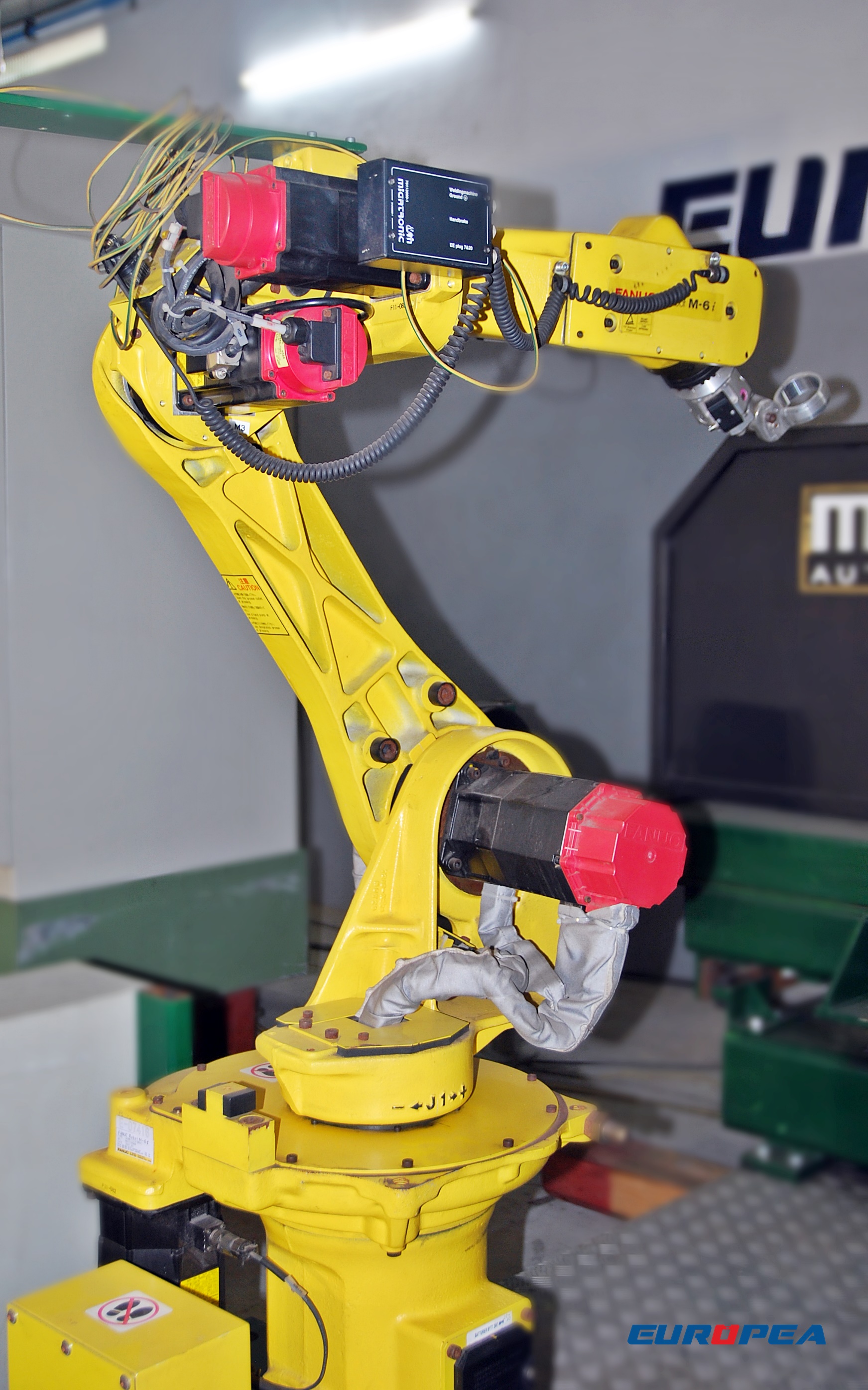

General Specifications
- Repeatability : + 0.1 mm ( + 0.004”)
- Max. Load Wrist Capacity : 6 Kg (13.2 lbs)
- : -
- 1 Upright : -
- 2 Inverted : -
- 3 Angle : -
- 4 Wall : -
- Max. Stroke : 90 MM (37”) largest in its scale
- Mechanical brakes (4) : Axes 2 & 3

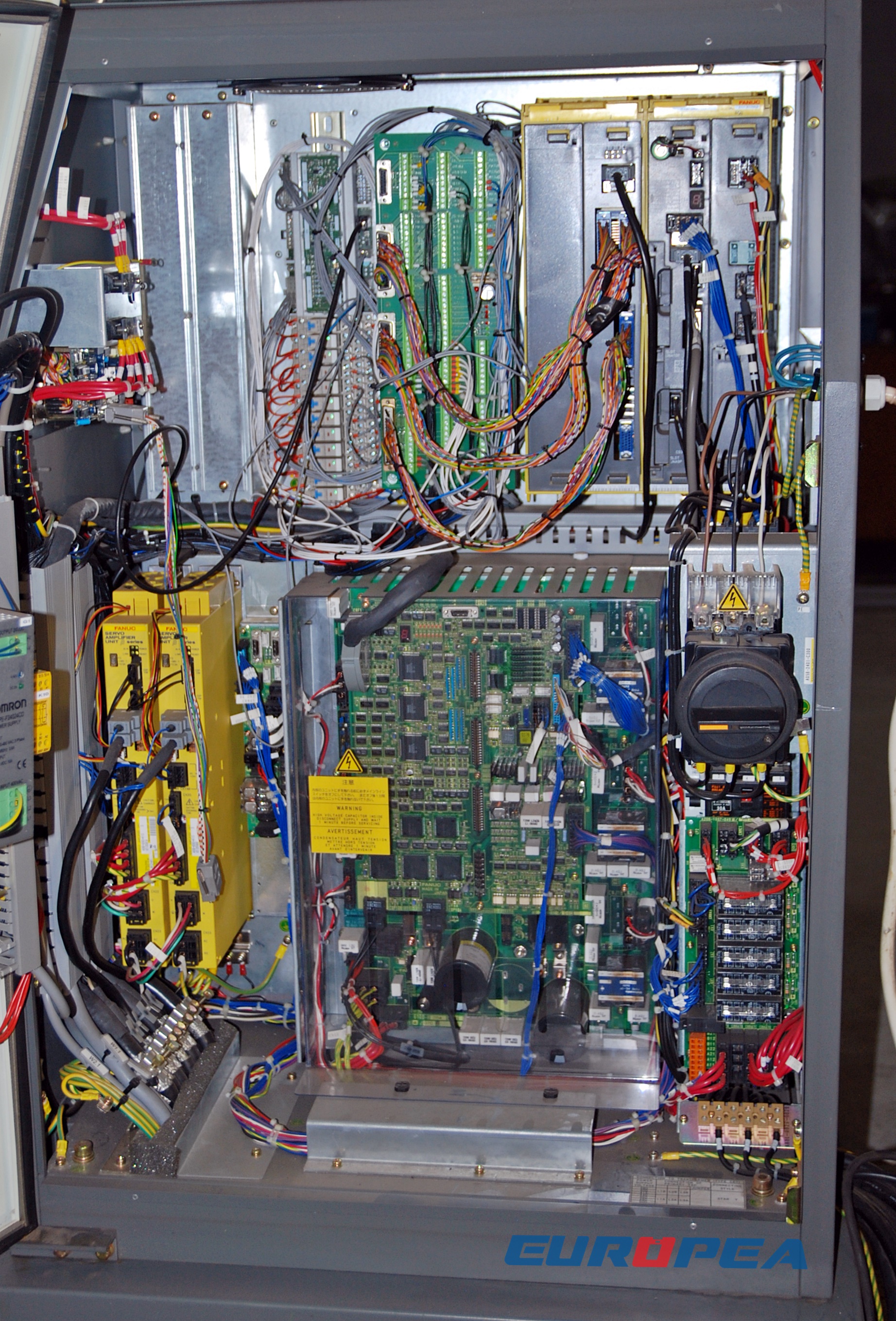

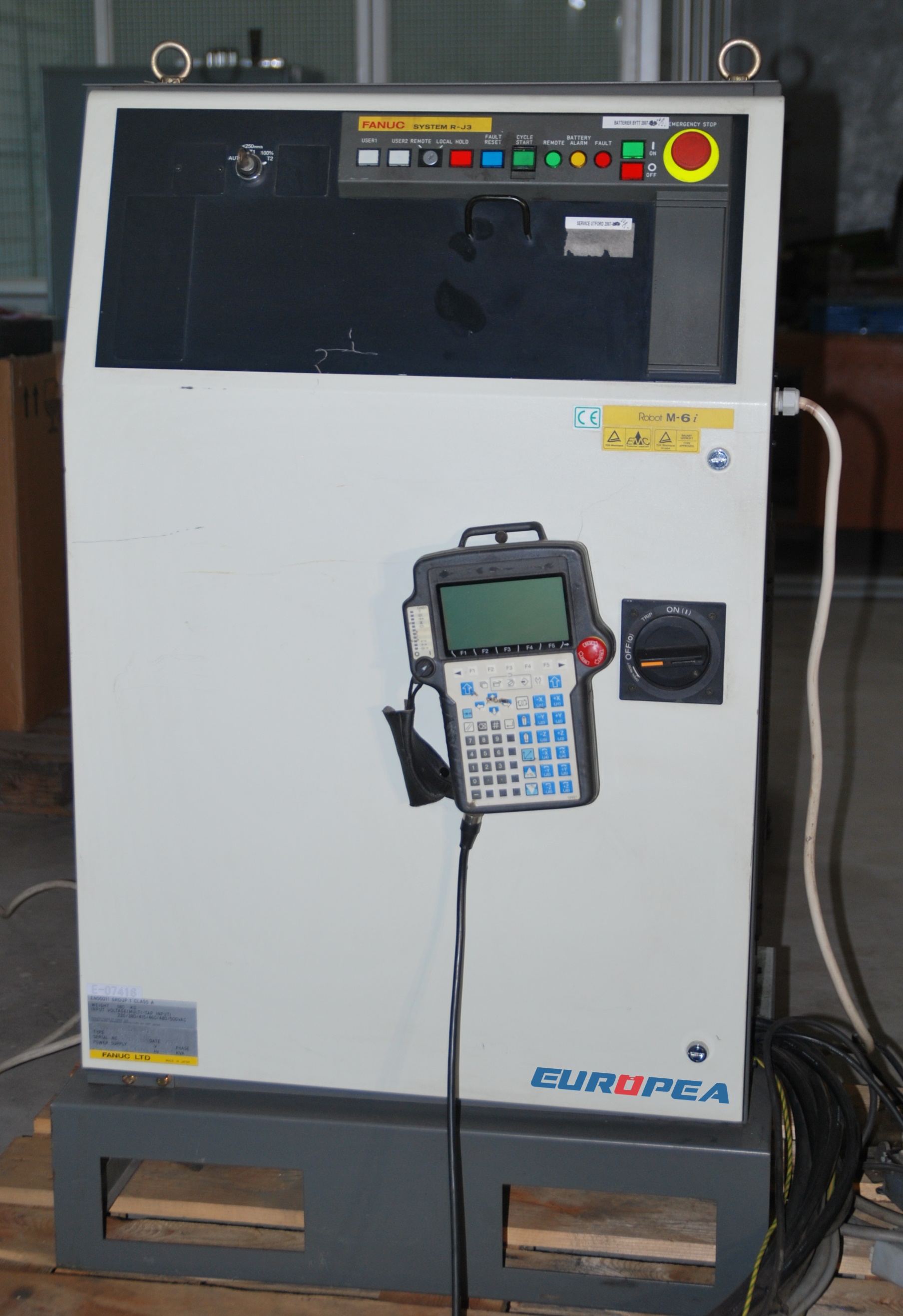

- Mechanical Weight : 290 Kg (638 lbs) Including I - Controller
- : -
Product Info
- Motion range & Speed (1)
- Range Speed
- Axis 1 - 330 deg 120 deg/sec
- Axis 2 - 210 deg 120 deg/sec
- Axis 3 - 299 deg 120 deg/sec
- Axis 4 - 380 deg 360 deg/sec
- Axis 5 - 280 deg 360 deg/sec
- Axis 6 - 640 deg 450 deg/sec
- Wrist Movement
- Range
- Axis 4 - 1.6 kg.m
- Axis 5 - 1.0 kg. m
- Axis 6 - 0.6 kg .m
- Wrist Load Inertias
- Range
- Axis 4 - 6.40 kg .cm .s2
- Axis 5 - 2.00 kg .cm .s2
- Axis 6 - 0.62 kg .cm .s2
