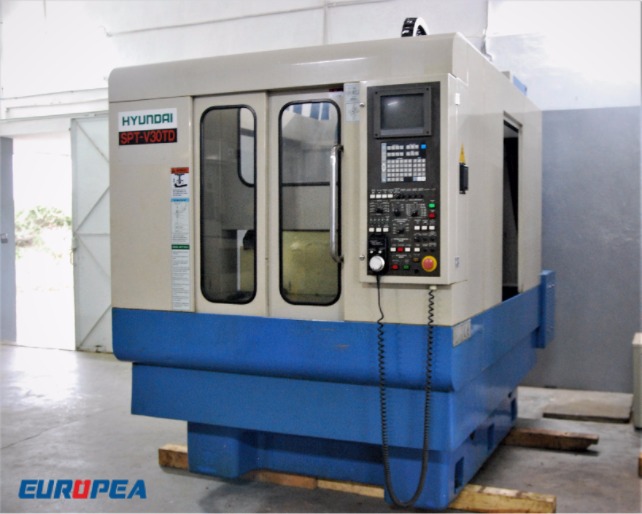

Other HYUNDAI SPT V 30 TD 2001 YASNAC J50 M_1
Sold
General Specifications
- DRILL & TAP CENTER : -
- Drilling : Dia 20 mm (SAE1045)
- Tapping : M 16 x 2.0p (SAE1045)
- Milling : 24 Cm Sq / min (SAE1045)
- X - Axis : 500 mm
- Y - Axis : 300 mm
- Z - Axis : 300 mm

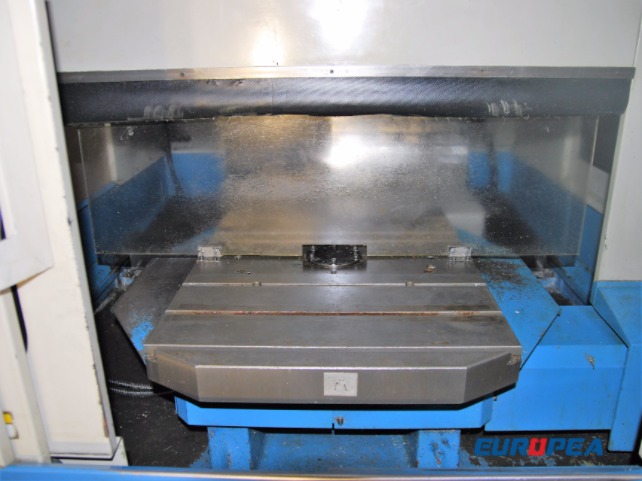

- Table Size : 600 x 380 mm
- Table Max. Load : 200 Kg
- Spindle Speed : 10 to 8000 RPM

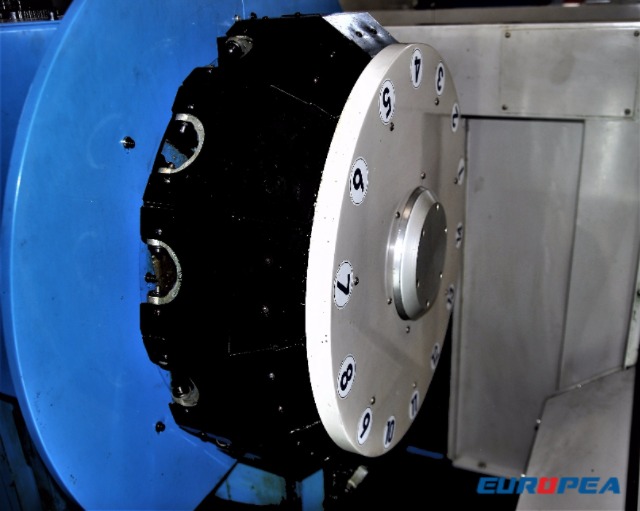

- Tool Capacity : 14 Tools
- Tool Shank Type : MAS BT 30
- : -
Product Info

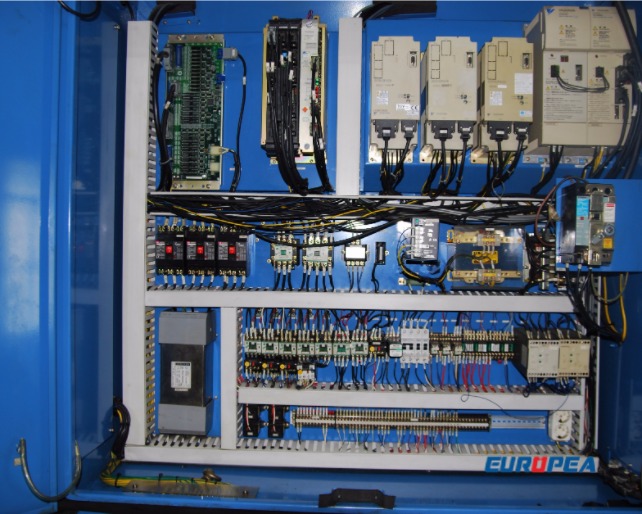

- Electrical Power supply - 10 kVA
- Power Required - AC 220 V + / - 10 %
- Machine Height - 2600 mm
- Machine Weight (Incl. NC Device) - 3500 Kg
- Floor Space - 1640 x 2349 mm
- Equipped With Coolant tank, Base Plates and Manual Books.
