Available
General Specifications
- Weight Between Centers : 80 Lbs.
- Weight Chucking : 55 Lbs.
- Workhead Through Hole Diameter : 28 MM
- Work Table : 800 X 114 MM
- Workhead Internal Taper : ISO - 50
- Workhead Type (Swivel Base): Fixed W/360 Deg : -
- Spindle Cartridge Diameter : 60 MM
- OD Grinding Range : Minimum
- Grinding Length : 730 MM
- Wheel: Wheel Diameter : 162 MM
- Wheel head Angle: 360 Deg. : -
- Motor: 5.5 HP : -
- Maximum Speed: 11 : 200 rpm
- X-Axis Travel : 460 MM
- Y-Axis Travel : 280 MM
- Z-Axis Travel : 244 MM
- : -
- : -
Product Info

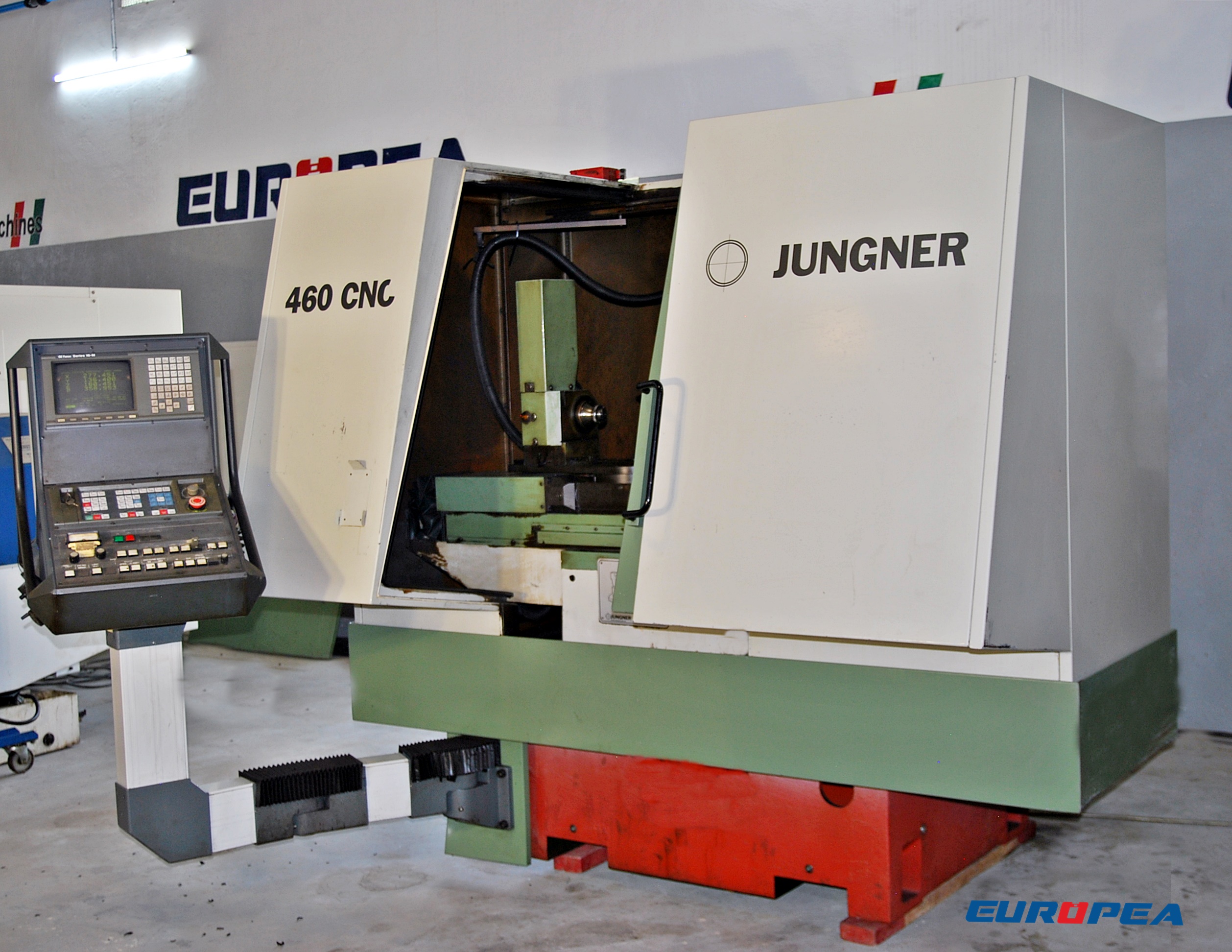

- JUNGNER US 460 CNC
- TOOL CUTTING & GRINDING MACHINE
- Equipped With
- 1. Grinding Wheels
- 2. Drilling Bits
- 3. Collets
- 4. Manual Books
- 5. Leveling Base Plates
MACHINE DIMENSION
- Weight Of the Machine – 2 700 KG
- Dimension L X W X H (excl. Extra Equipment’s) – 2,250 X 2,400 X2,050 MM
