General Specifications
- Swing Over the bed : 590 mm
- Swing Over saddle : 450 mm
- Max Machining Diameter : 355 mm
- Max. Workpiece Length : 583 mm
- X-Axis Travel : 250 mm
- Z-Axis Travel : 680 mm
- : -

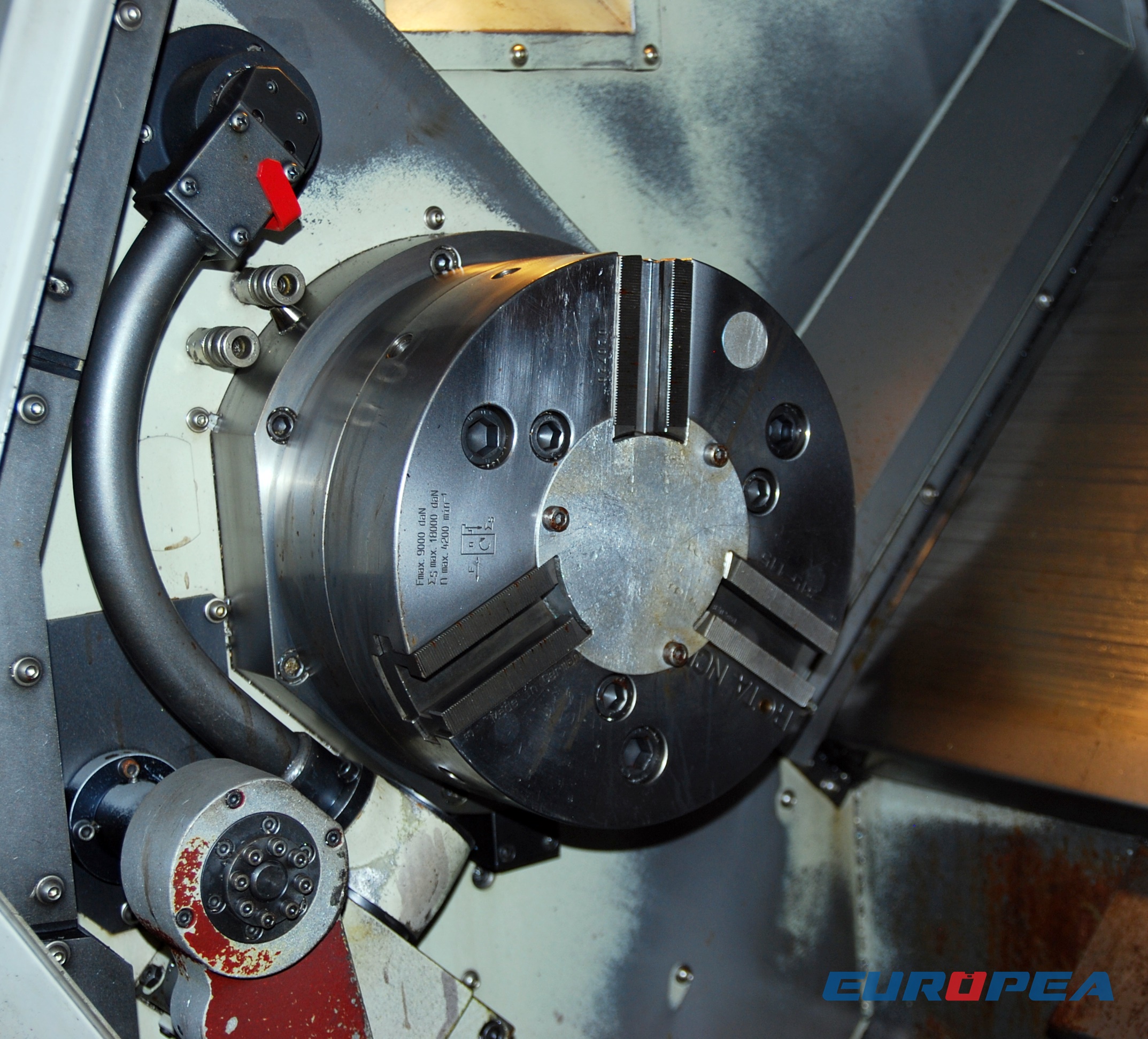

- Chuck Diameter : 315 mm
- Max Spindle Speed : 3500 RPM
- Spindle Nose : A2-8
- Spindle Bore Diameter : 90 mm

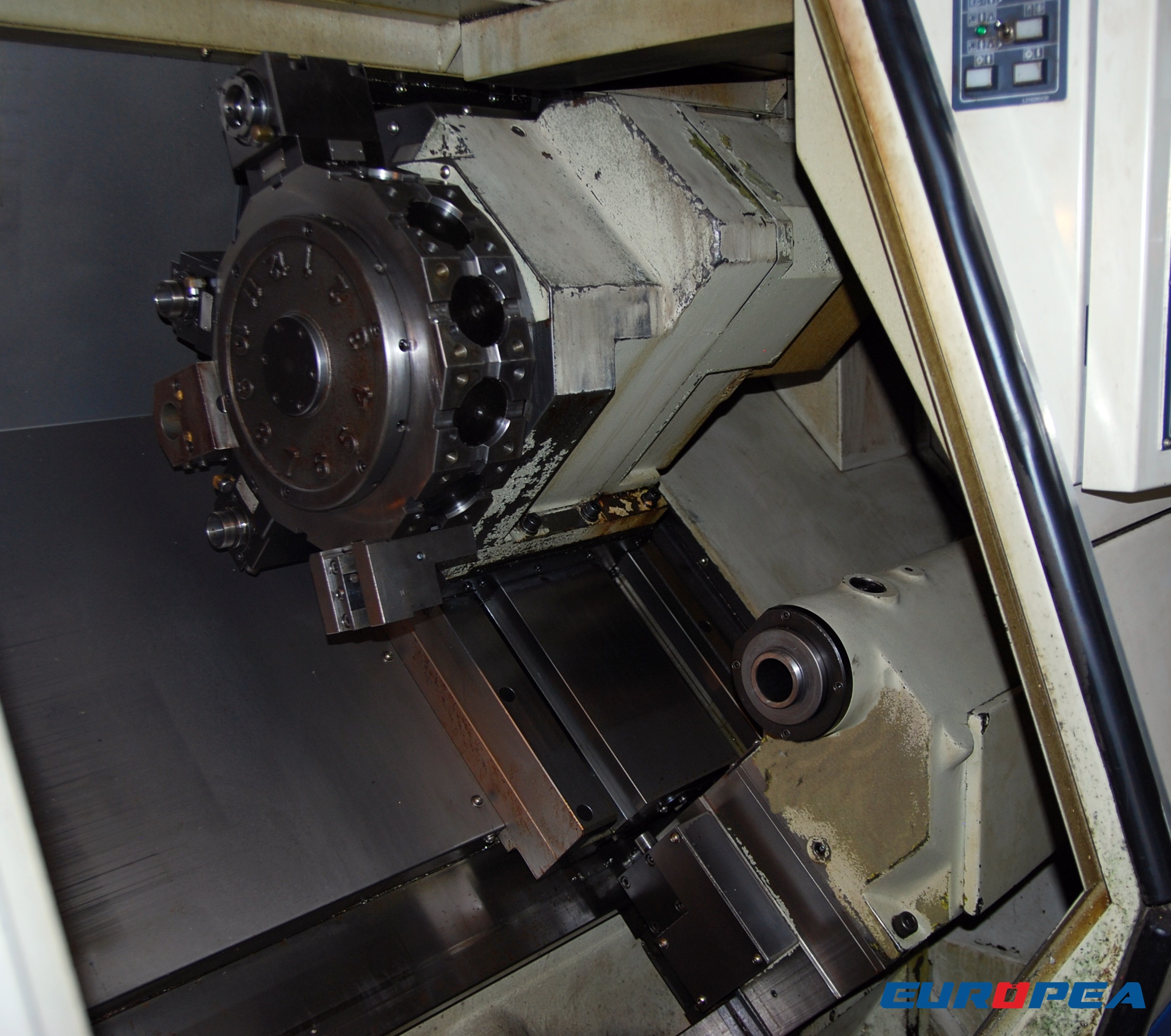

- No. of Tools : 12 Nos (BMT Holders)
- OD Tool Height : 25 mm
- Boring Bar Diameter : 40 mm
- ROTARY TOOL : -
- Speed range : 40 to 4000 RPM
- Collet : Milling/tab
- : -
Product Info
- Machine Equipped with
- 1. Coolant Tank
- 2. Chip conveyor
- 3. Manual Books
- 4. Leveling Pads
- 5. Tool Holders
- 6. Tail Stock
MACHINE DIMENTIONS
- Floor Space - 3430 X 1800 mm
- Height - 1825 mm
- Machine Weight with CNC system - 5740 Kgs
POWER CONSUPTION
- Power required - 50kVa
- Coolant Pump - 0.24 KW
- X Feed Drives - 2.8 KW
- Z Feed Drives - 4.4 KW
