Sold
General Specifications
- X Axis Travel : 1020 mm
- Y Axis Travel : 510 mm
- Z Axis Travel : 510 mm

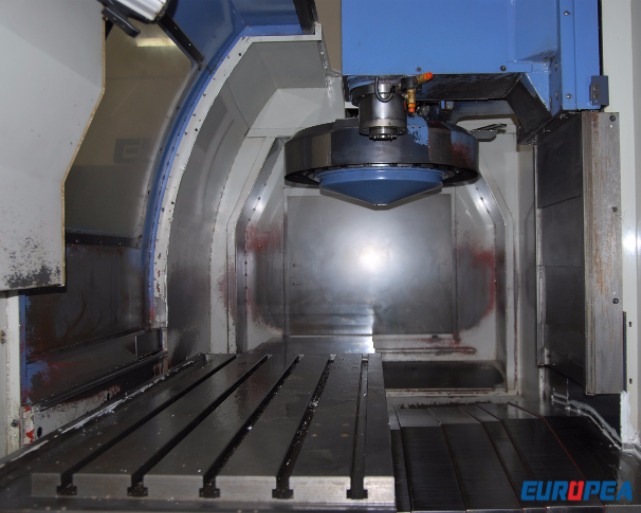

- Size of Working Surface : 1200 mm x 510 mm
- Weight of workpeice : 500 Kg
- Tool shank : BT - 40

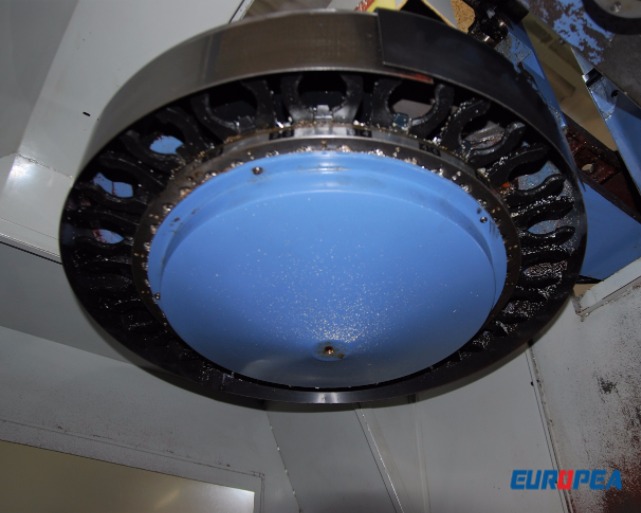

- Tool Storage Capacity : 20 Pockets

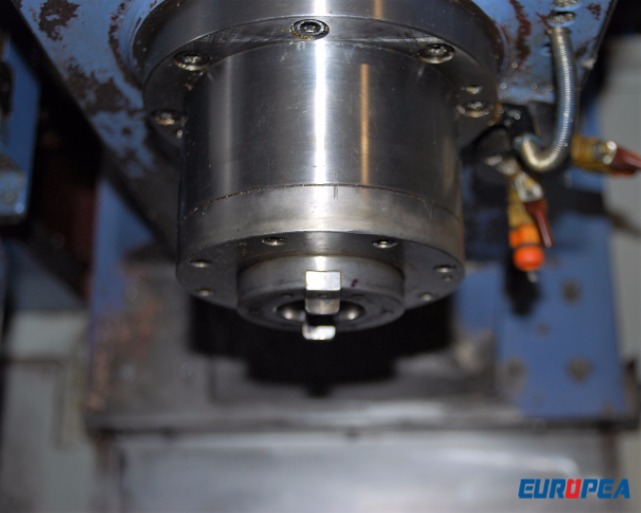

- Spindle Speed : 8000 RPM
- Spindle Nose : 7/24 Taper
- Tool Clamping Force : 850 Kg
Product Info

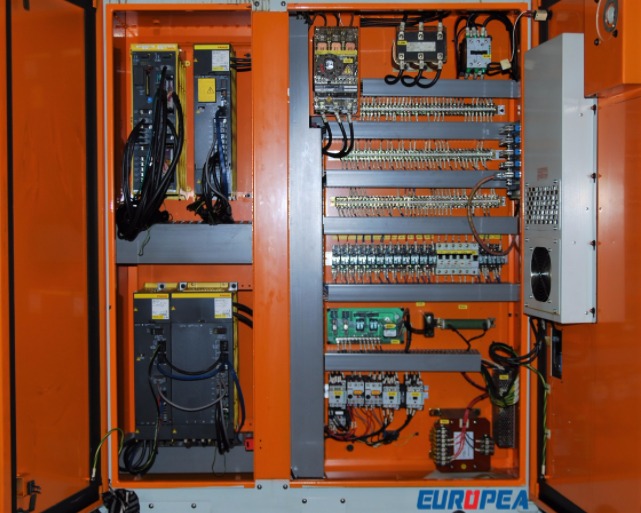

- Electrical Power Supply - 25 KVa
- Compressed Air Pressure - 0.6 Mpa
- Compressed Air Flow rate - 400 L/min
- Height Of the Machine - 2585 mm
- Floor Space - 2990 mm x 2929 mm
- Mass of machine - 5400 Kg
