VMC ZPS MCFV 125EZ 1997 HEIDENHAINTNC426_1

ZPS | MCFV 125EZ | No

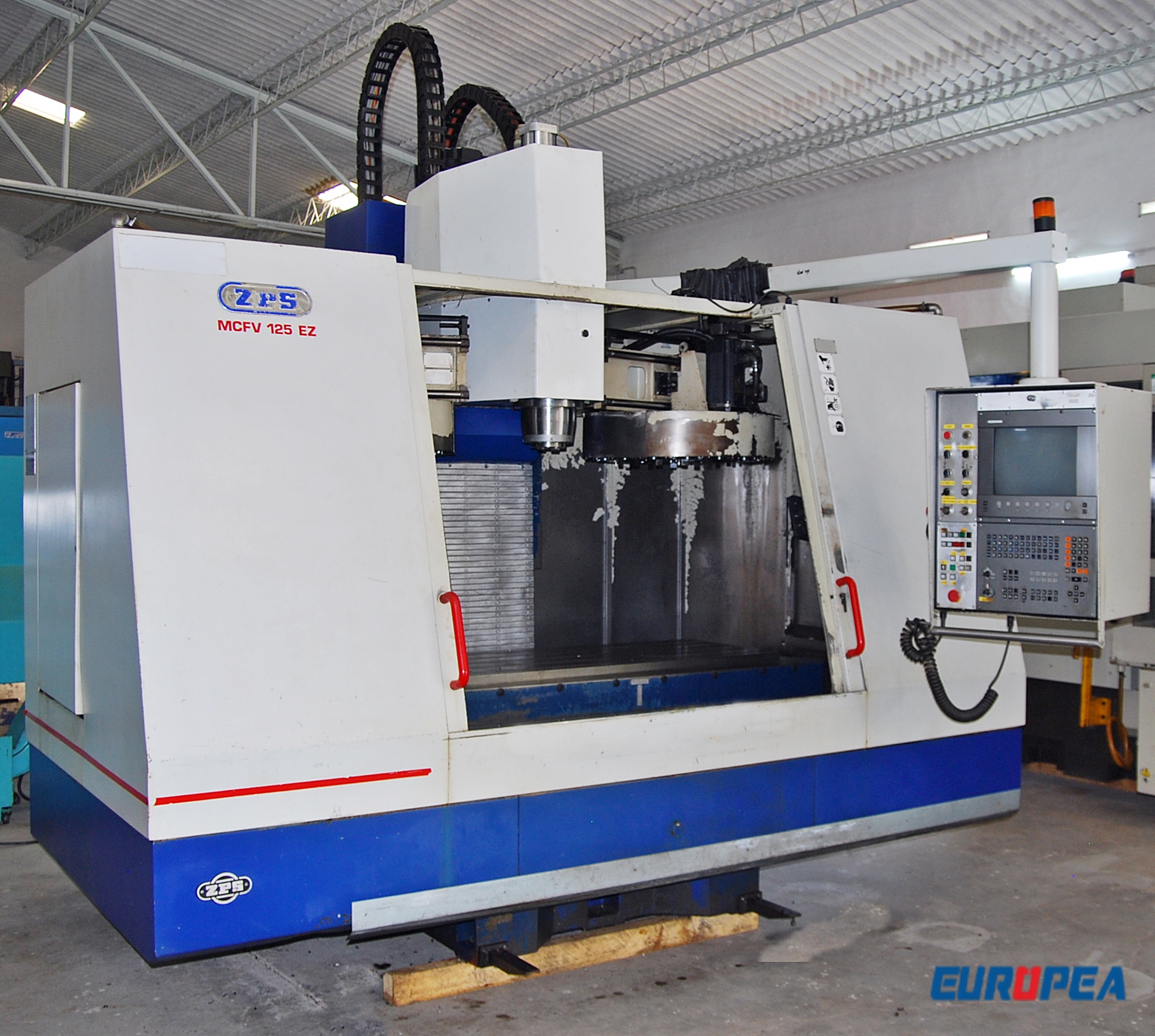

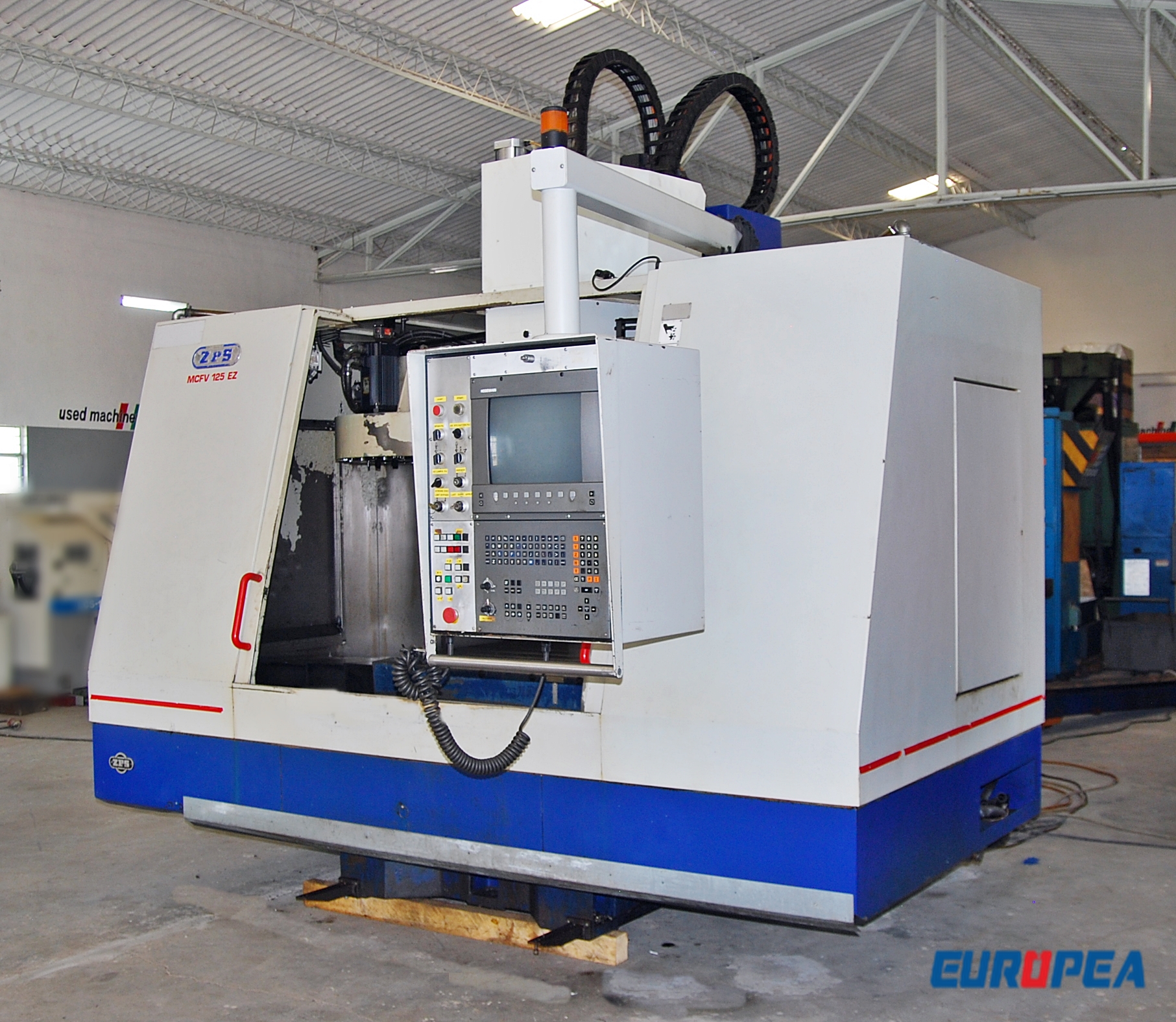

Vertical Machining Center
Control : HEIDENHAINTNC426
Year : 1997

Enquire Now

VMC ZPS | MCFV 125EZ | No HEIDENHAINTNC426 1997

Sold

General Specifications

Table Dimension : 1250 X 590 mm
X Axis : 1270 mm
Y Axis : 610 mm
Z Axis : 760 mm

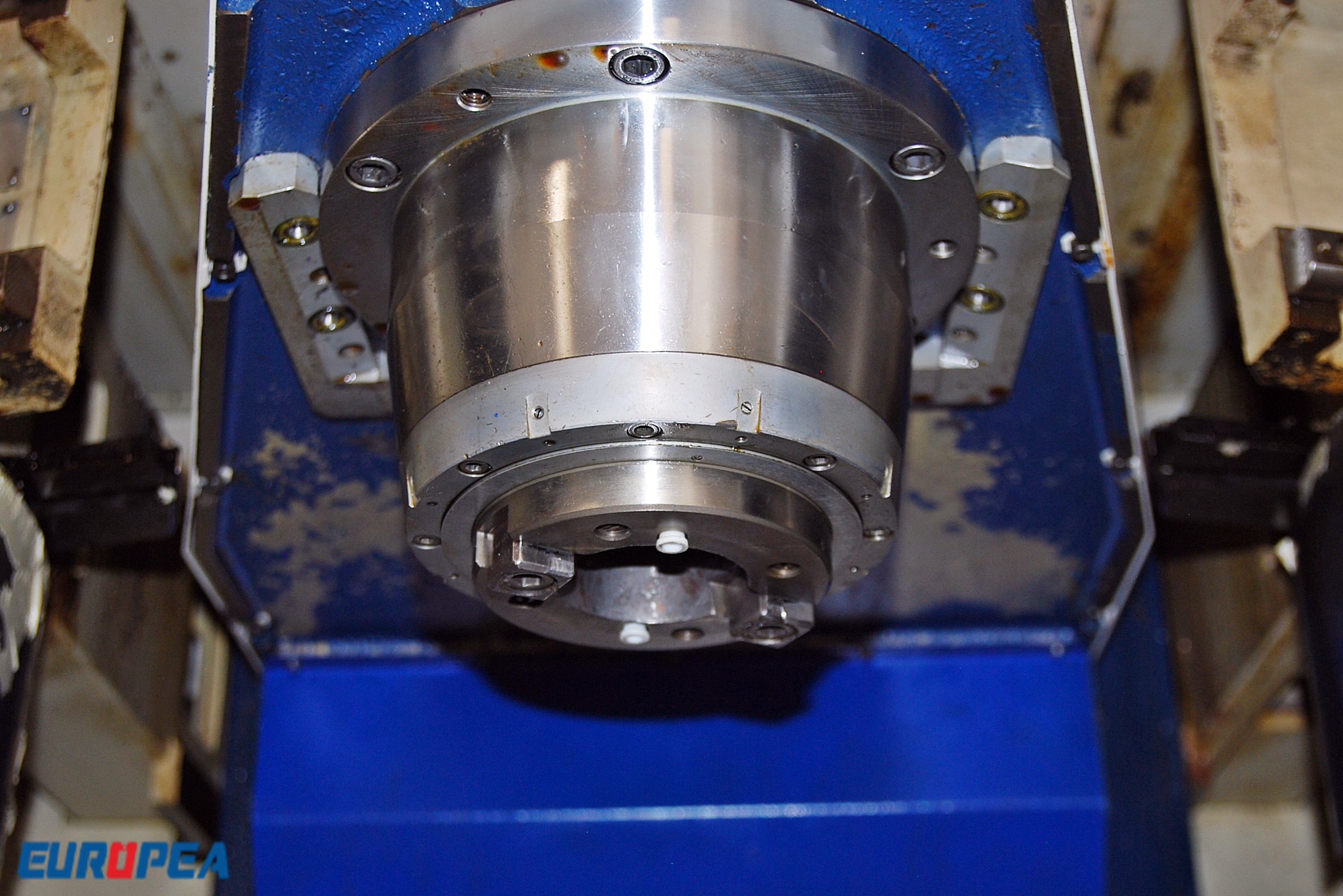

Spindle Clamping Taper : ISO 50
Spindle Speed : 0 to 6000 / min
Spindle Power : 7.5 kW

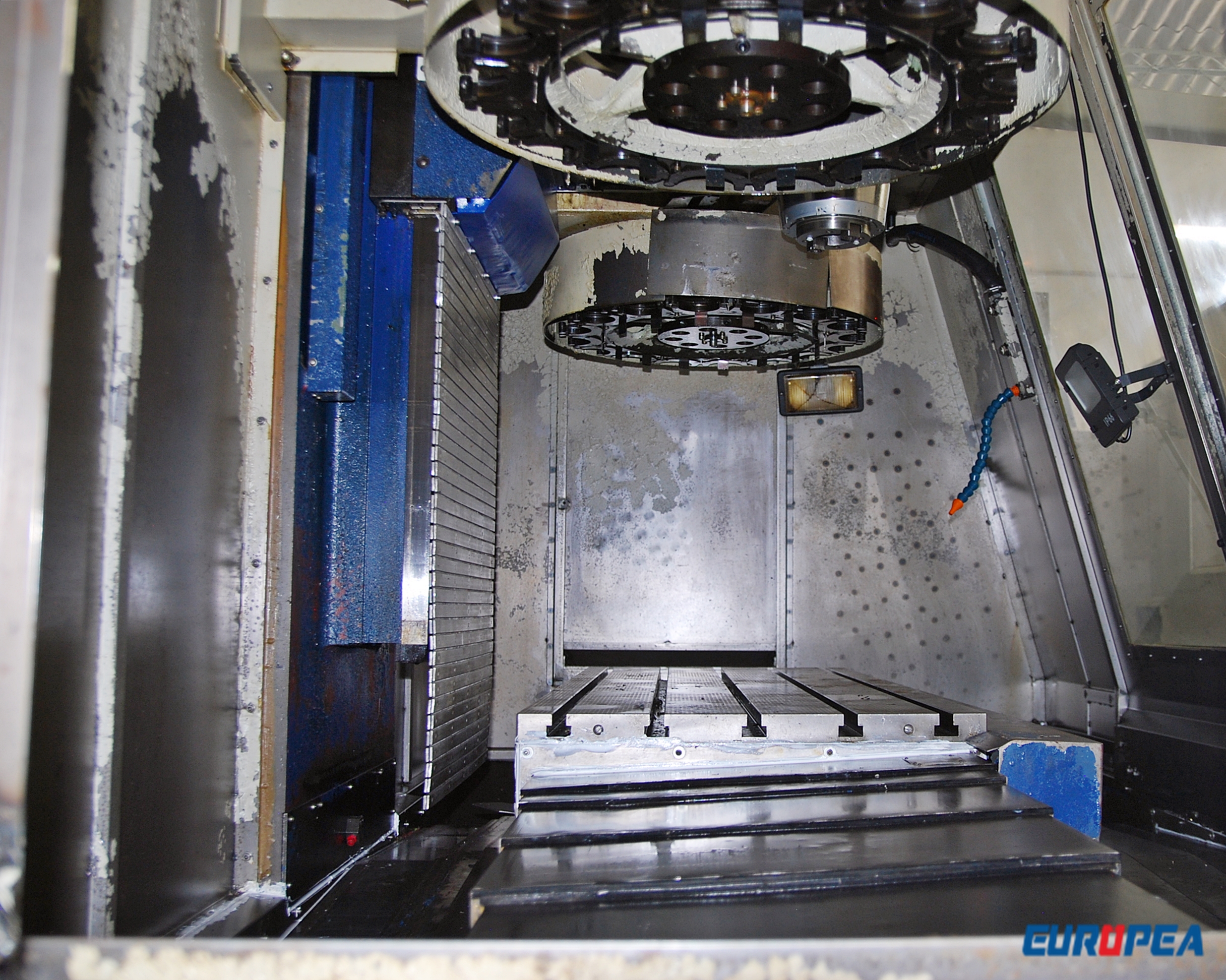

ATC Type : Umbrella Type
No of tools : (16 + 16 ) Pockets
Dual ATC : -
: -

Product Info

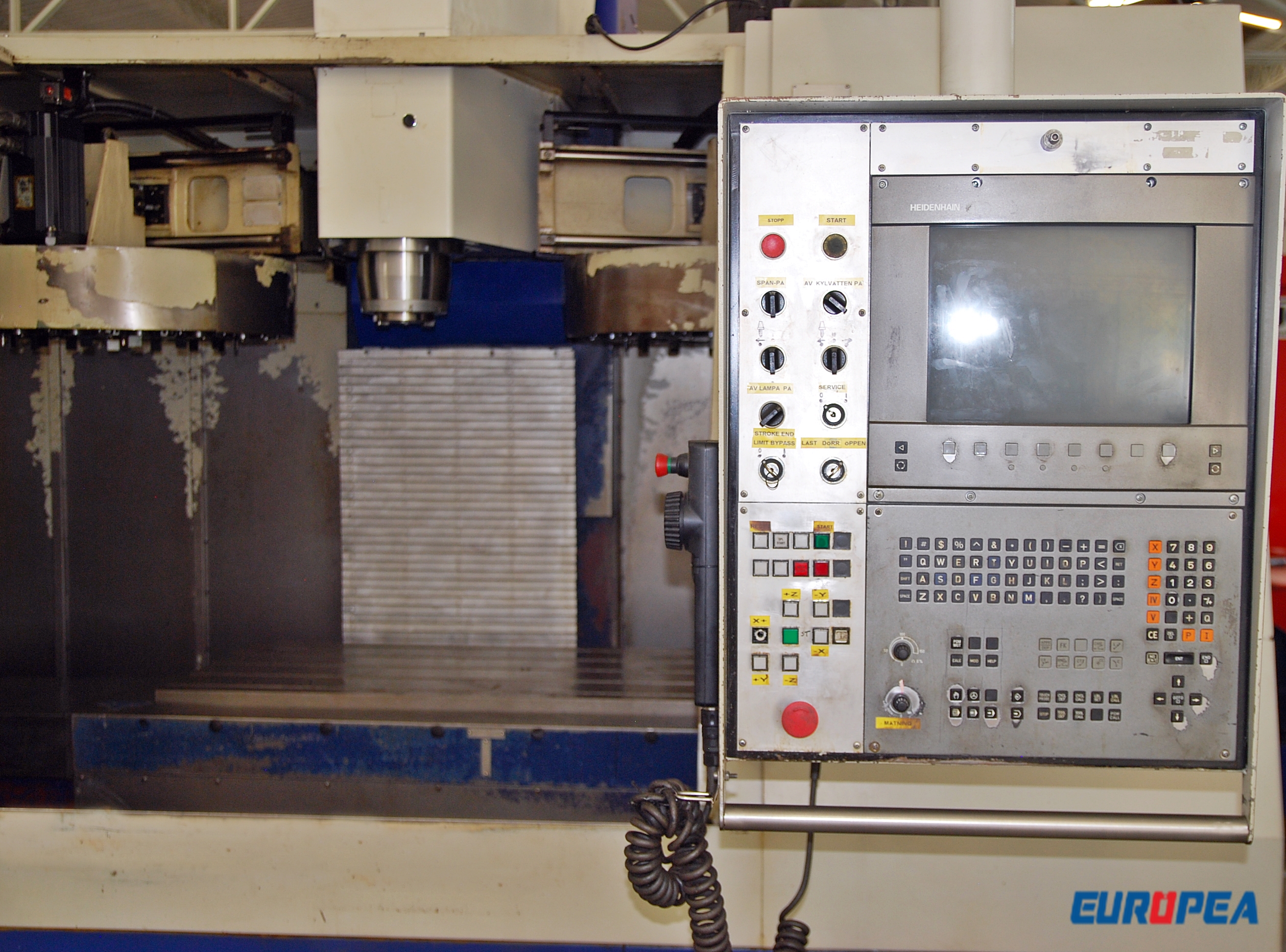

CNC Type - HEIDENHAIN TNC 426
Machine Dimension - 3200 X 2215 X 3520 mm
Machine Weight - 8000 KG
Equipped with Chip Conveyor, Base Plates, Coolant Tank, Hydraulic Power pack, Tool Holders and Drive Manuals.
