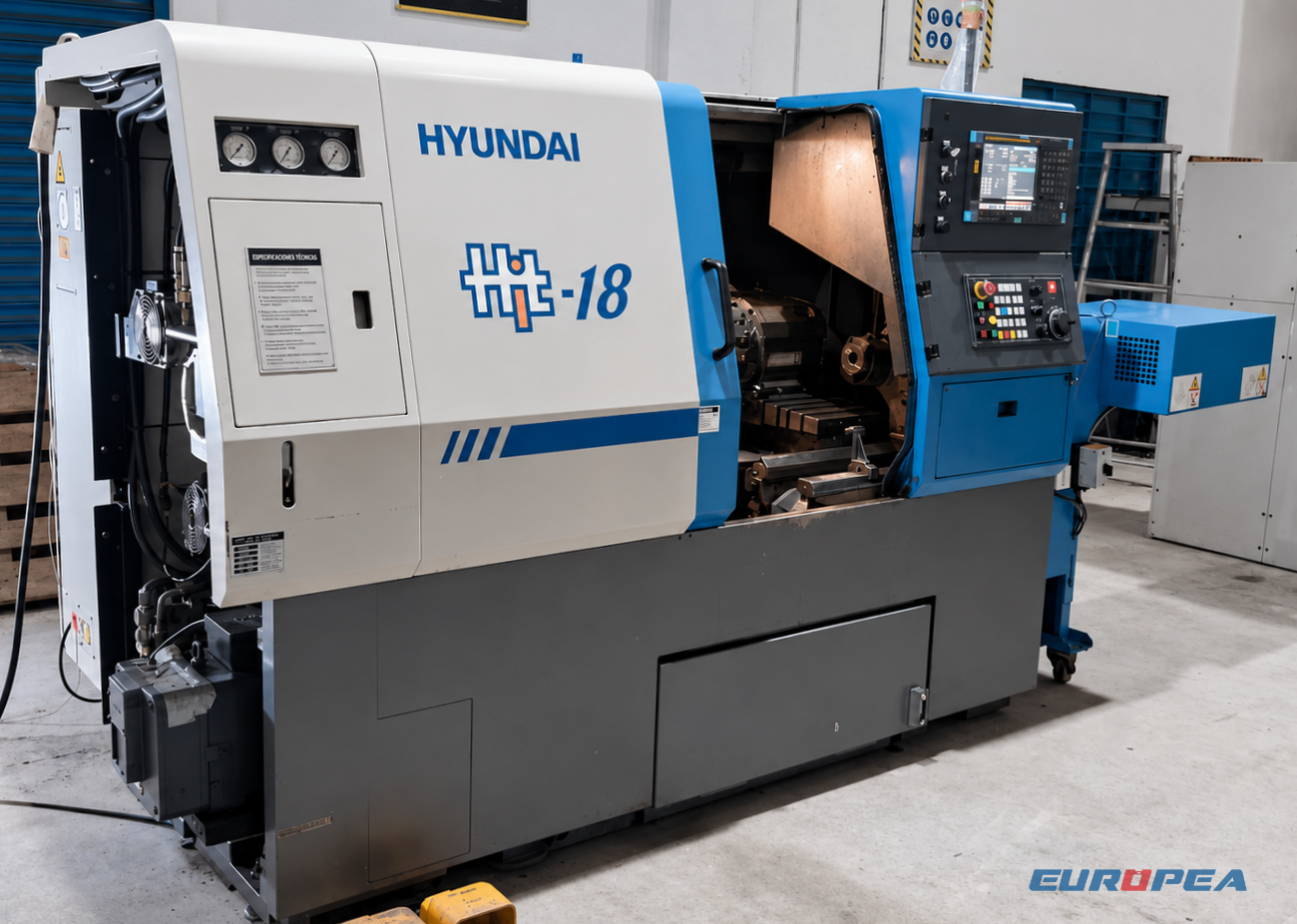

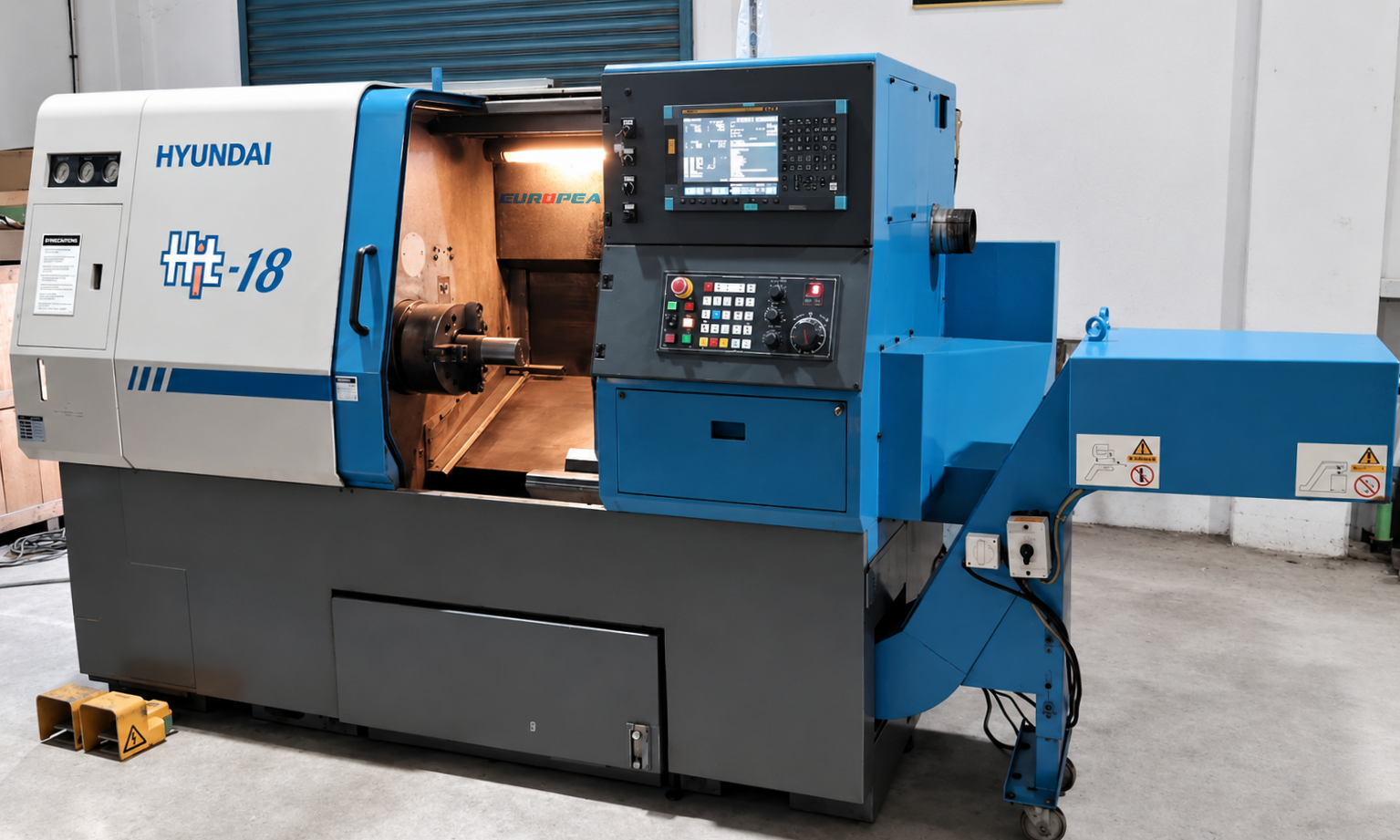

HYUNDAI | HIT 18 | RETROFITTED | No
Turning Center

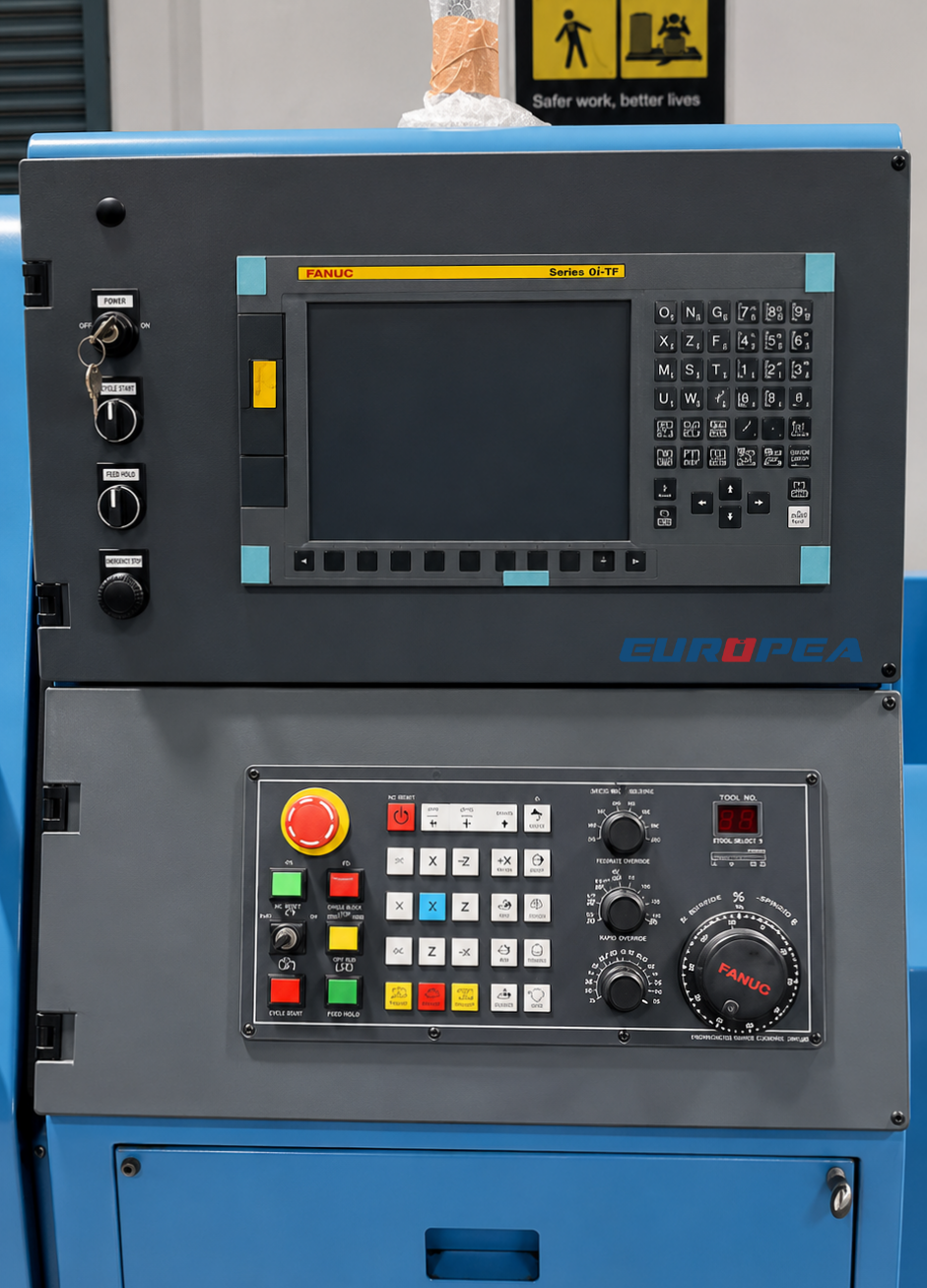

Control : FANUC Oi TF PLUS
Year : 2000
Enquire Now
Available
General Specifications

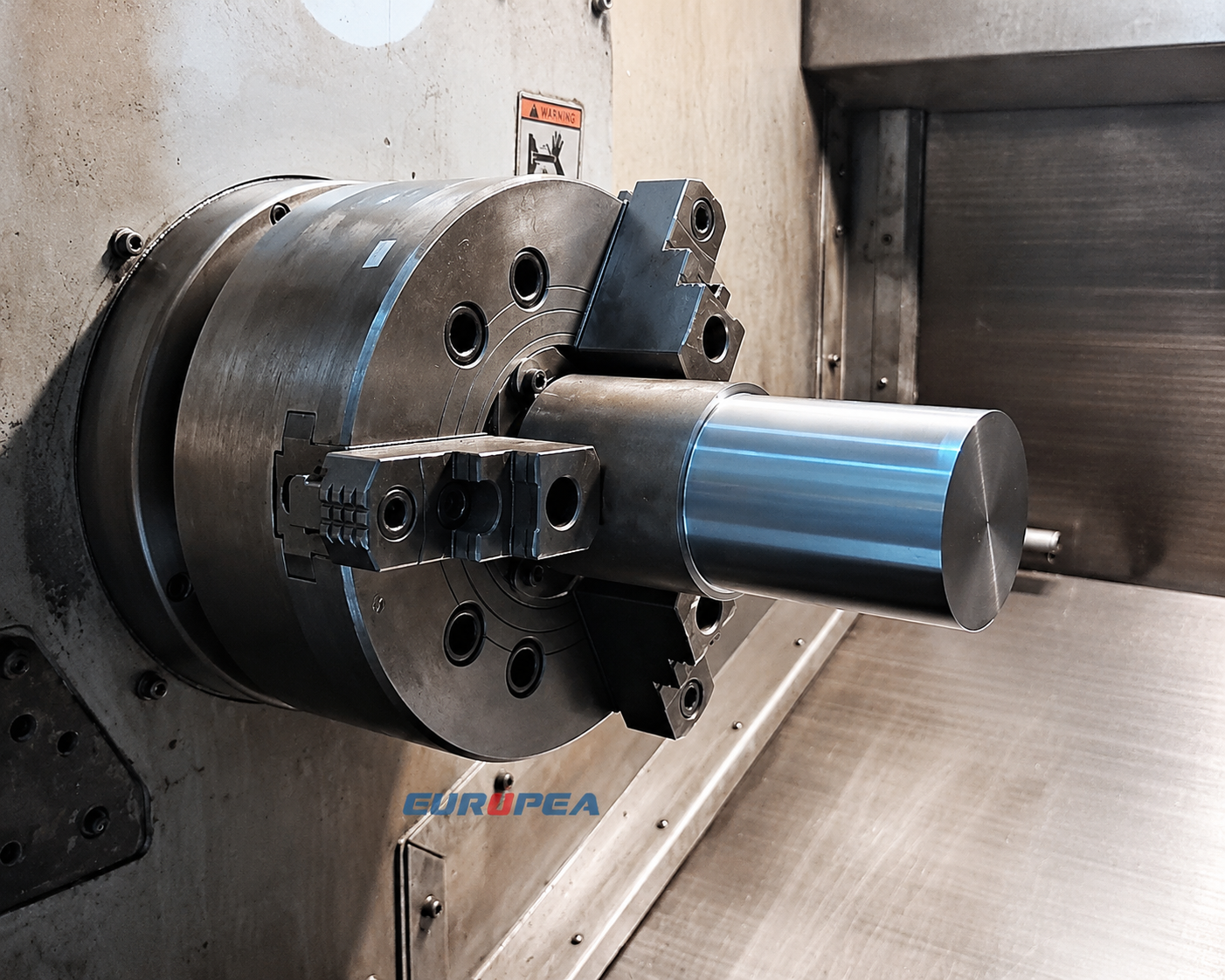

- • Chuck Diameter : 250MM
- • Max Swing : Diameter 440mm
- • Max. Cutting Diameter : 254 mm
- • Max. Cutting Length : 500 mm
- • Max. Bar Work Size : 70 mm
- • Spindle Speed : Max 3000 RPM
- • Spindle Bore : Diameter 80 mm
- • Spindle Nose : A2 - 8
- • X Axis Travel : 180 mm
- • Z Axis Travel : 510 mm
- : -
Product Info
- Retrofitted with FANUC Oi - TF PLUS (With 2 YEARS of System Warranty)
- Machine Equipped With the following items:
- 1. Coolant Tank
- 2. Chip Conveyor
- 3. User Manuals
- 4. Base Levelling Pads
MACHINE DIMENSION
- 1. Bed Type - Flat
- 2. Floor Space (L X W) - 2765 X 1680 MM
- 3. Machie Height - 1712 mm
- 4. Machine Weight - 4,300 Kgs

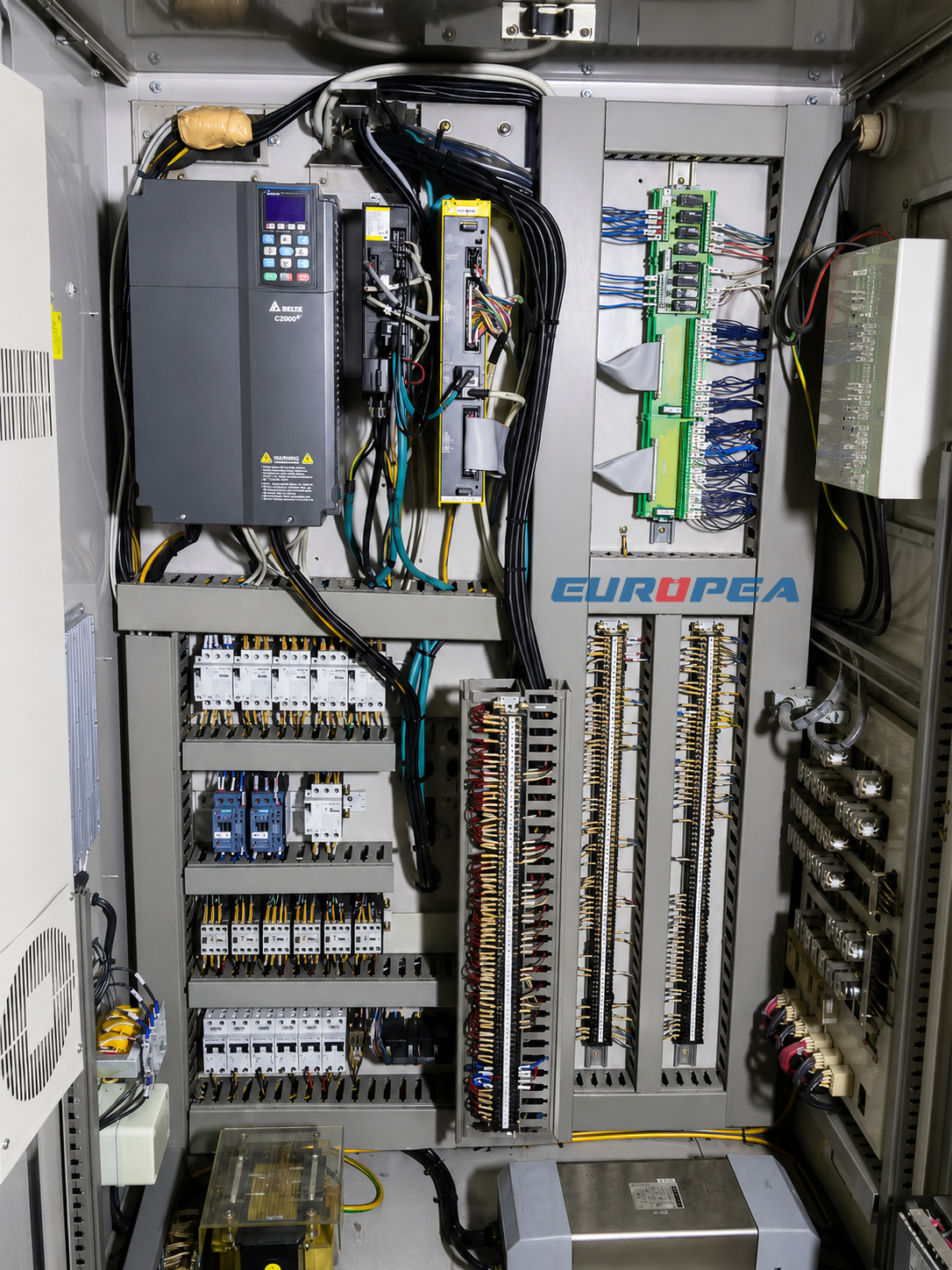

- Electrical Power Supply, 34.6 kVA
TAIL STOCK
- 1. Tailstock Diameter - 80 mm
- 2. Stroke of Tailstock Sleeve - 130 mm
- 3. Stroke of Tailstock Body - 430 mm
- 4. Taper Type - MT # 4
