Available
General Specifications

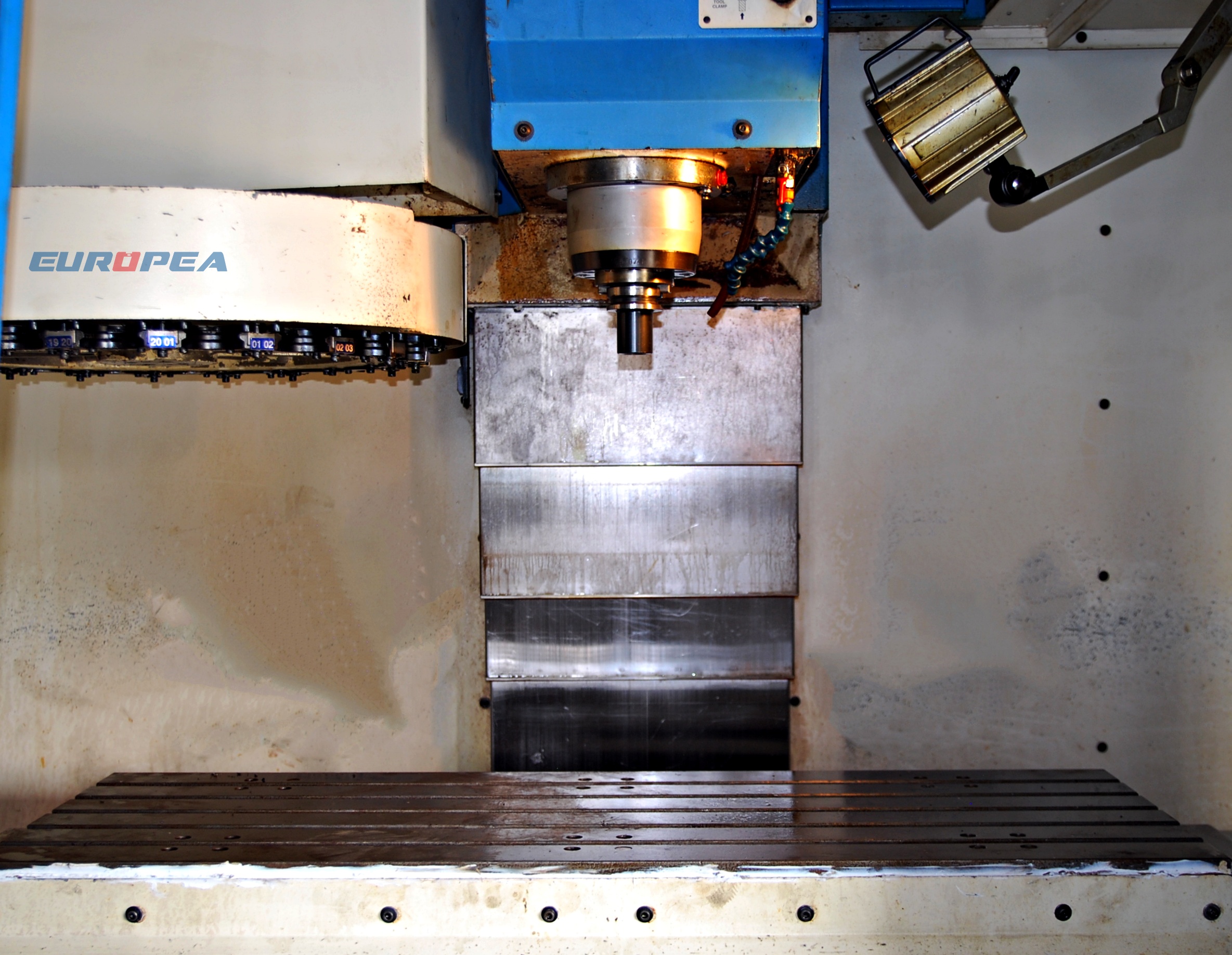

- Table Size : 1200 x 450 MM
- Max. Table load : 600 Kg
- : -
- X Axis Travel : 1020 MM
- Y Axis Travel : 510 MM
- Z Axis Travel : 510 MM
- Spindle Taper : 7/24 (#40)
- Spindle Speed : 80 to 8000 rpm
- Spindle Nose to Table : 150 to 660 MM

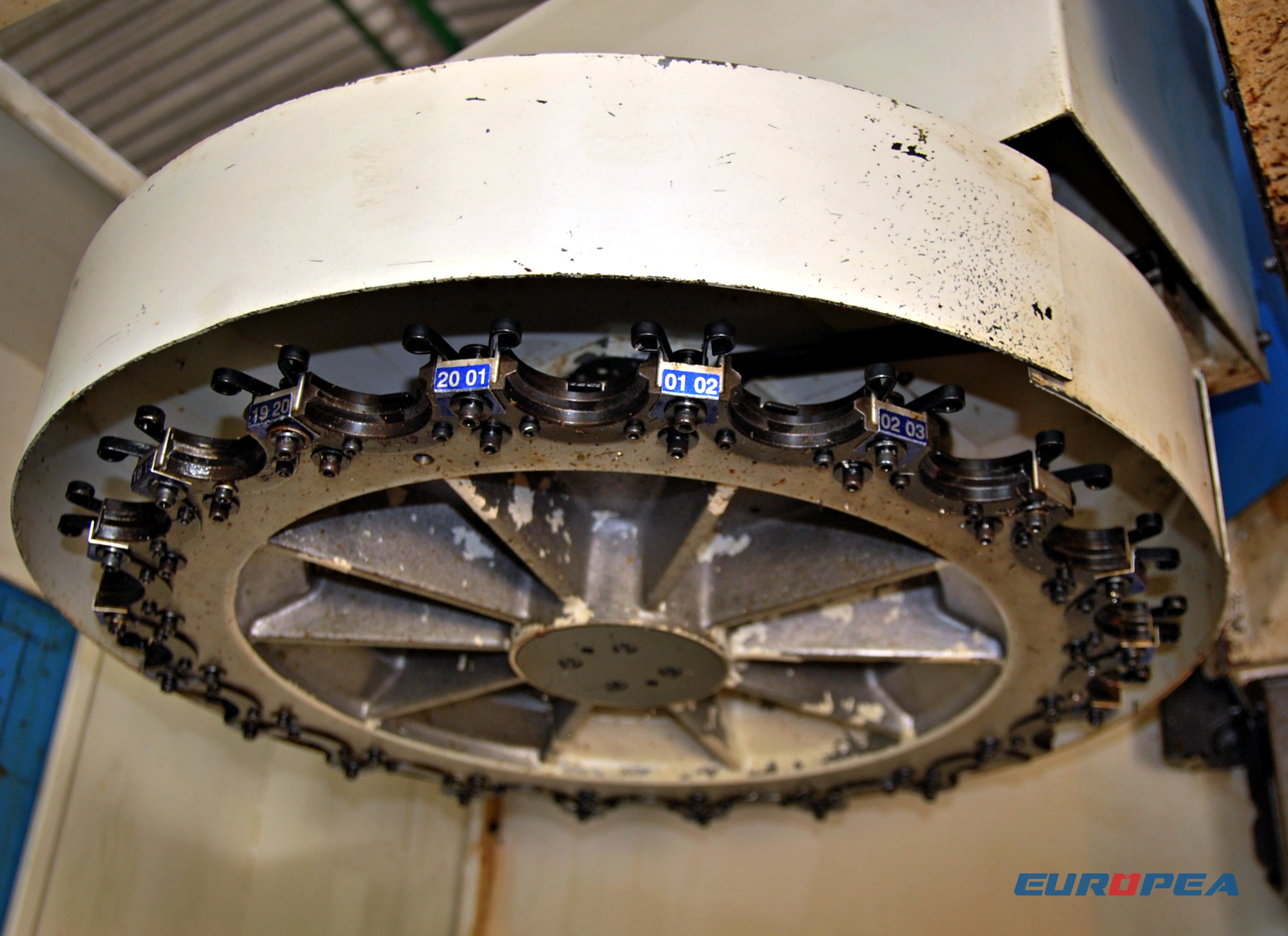

- Tool Capacity : 20 Numbers
- Tool Shank : CT - 40
- Pull Stud : JMBTA Standard 45 Degree
- Max. Tool Diameter : 89 Mm
- Max. Tool Weight : 7 Kg
Product Info
- Machine Equipped With
- 1. Manual Books
- 2. Leveling Pads
- 3. Chip Collecting Bin
- 4. Coolant Tank
- 5. Power Pack
MOTORS SPECIFICATION
- 1. Spindle Motor (30 Mins) - 10 HP (7.5 kW)
- 2. X, Y, Z Axes Drive Motors - 1.4 HP (1.0 kW)
- 3. Coolant Pumps - 0.5 HP (0.38 kW)
GENERAL SPECIFICATION
- 1. Power required - 15 KVA
- 2. Air Required - 80 PSI
- 3. Floor Space (L x W x H) - 2830x 2741 x 2532 MM
- 4. Machine weight - 5000 KG
