Sold
General Specifications

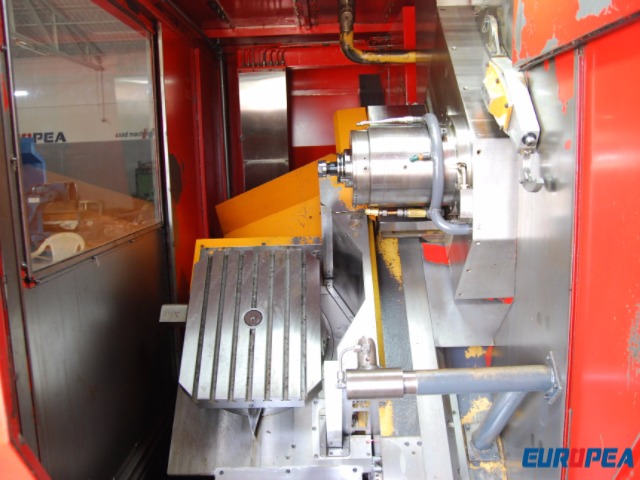

- Table Work Area : 400 x 400 mm
- Alternative 400 x 500 mm : -
- X Axis Travel : 610 mm
- Y Axis Travel : 460 mm
- Z Axis Travel : 550 mm
- Distance from Board Center to Spindle Center : 115 to 665 mm

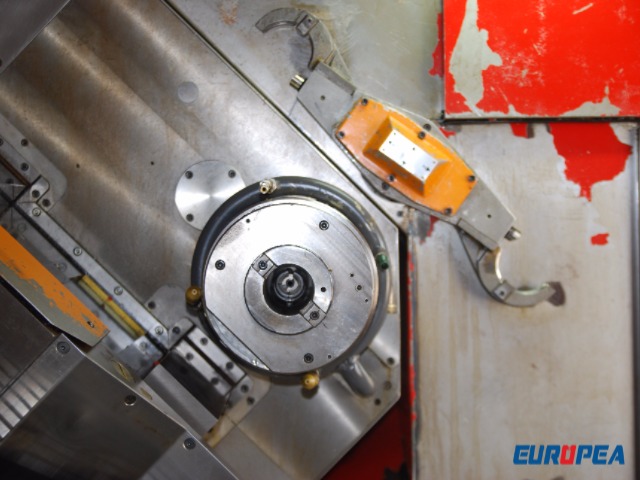

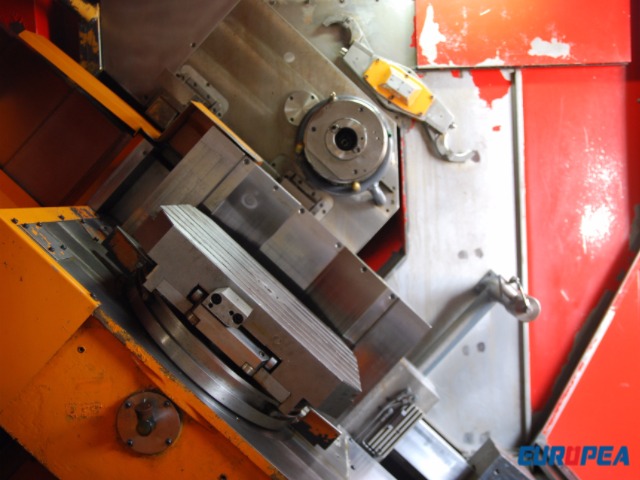

- Spindle Speed : 40 to 6000 Min-1
- Spindle Cone : ISO 45

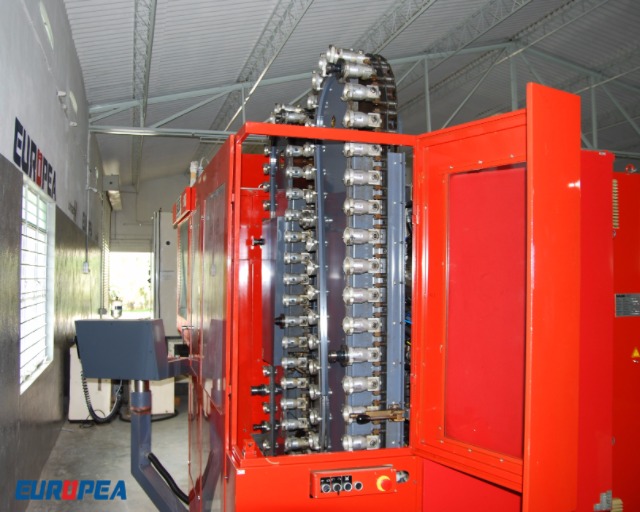

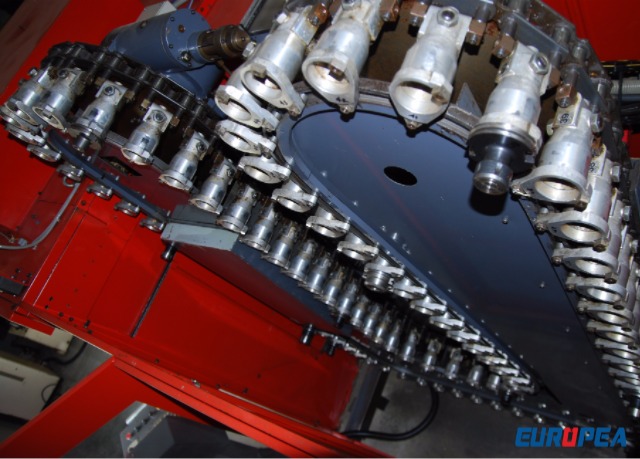

- Magazine Tool Capacity : 90 Tools
- ATC : ARM Type
- : -
Product Info

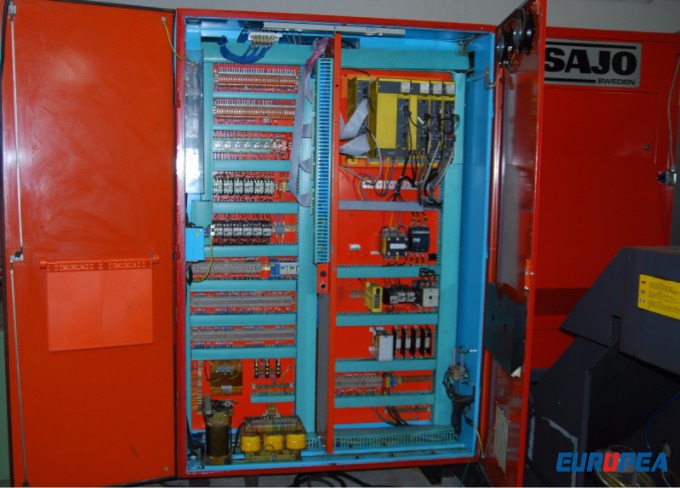

- SYSTEM - FANUC Oi (RETROFITTED)
- Equipped With
- 1. Hydraulic Power pack
- 2. Set of Tool Holders
- 3. Chip Conveyor
- 4. Coolant Tank
- 5. Manual Books
- Machine Height - 2500 mm

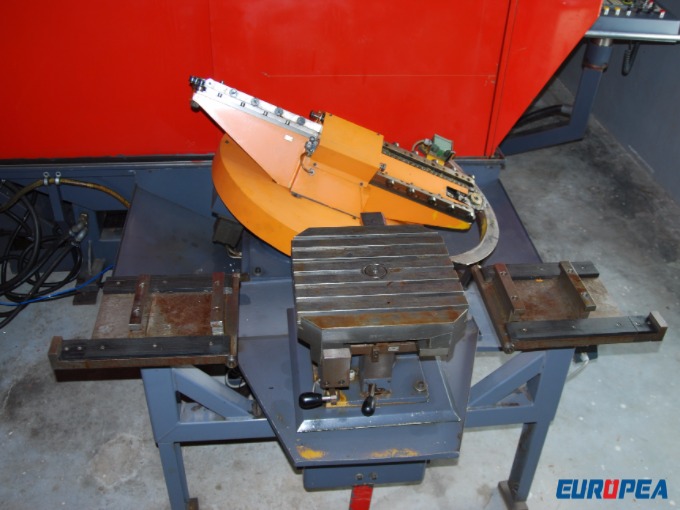

- Floor Space (With palette exchanger) - 5310 x 5840 mm
- Machine Weight (Incl. Nc device) 7000 kg
