General Specifications
- Power Unit : Battery
- Operation : Pedestrian
- Load Capacity : 1400 Kg
- Load Center : 600 MM
- Axle center to Load Face : 726 MM
- Wheelbase : 1303 MM
- Height of Mast : Extended
- Free lift : 150 MM
- Height of tiller arm in Operating Position Max. / Min. - 1095 MM / 1217 MM : -
- : -
Product Info
- WHEEL DIMENSIONS
- 1. Front (Drive) Tyre Size - 230 / 90 MM
- 2. Rear (Load) Tyre size - 85 X 85 Mm
- 3.Auxiliary Wheel Dimension - 2 X Diameter 140 MM X L50
- 4. Front (Drive) Track Width - 520 MM
- 5. Rear (load) Track Width - 380 MM
- FORK DIMENSION
- 1. Fork Height, lowered - 86 MM
- 2. Overall length - 2031 MM
- 3.Length Of Fork Face - 882 MM
- 4.Overall width - 800 MM
- 5. fork Dimension (L X B X T) - 1150 X 180 X 71 MM
- 6. Fork Carriage Width - 780 MM
- 7. Fork Spread Max. / Min. - 560 / 680 MM
- 8. Load Bearing Arms Max. / Min, - 255 / 375 MM
- 7. Ground Clearance, center of Wheelbase - 30 MM

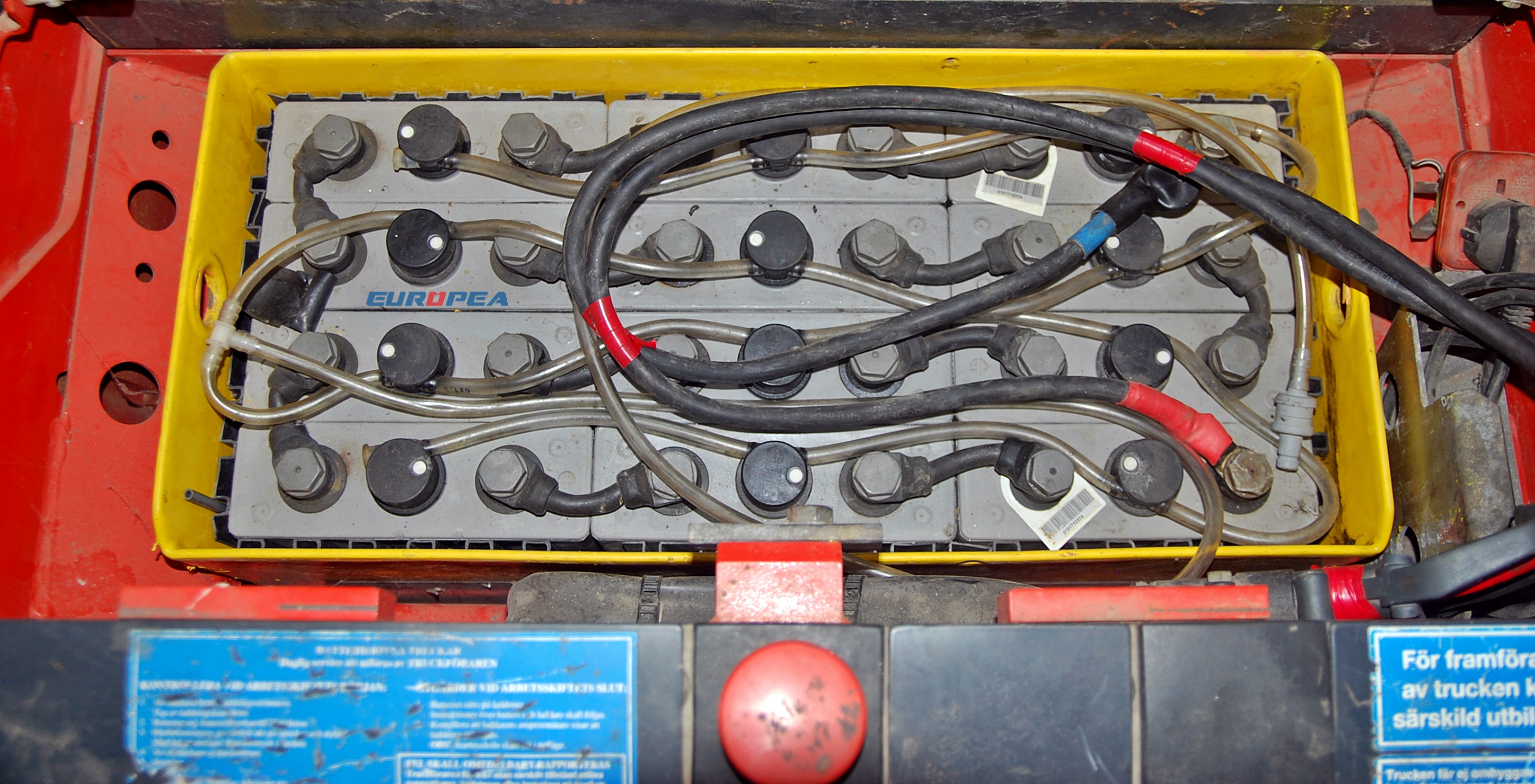

BATTERY & DRIVE SPECIFICATION
- MARATHON CLASSIC BATTERY
- 1. Battery According to DIN 43531/35/36 A,B,C No - DIN 43535B
- 2. Battery Voltage / rated Capacity - 24 V / 240 Ah
- 3. Battery weight - 240 Kg
- DRIVE
- 4. Type of Drive Control - electronic (LDC)
- 5. Drive Motor, 60 Min Rating - 1.5 kW
- 6. Lift Motor, at 15 % Rating - 3 kW
PERFORMANCE
- 1. Travel Speed with Load - 7 km/h
- 2. Travel Speed without Load - 9 km/h
- 3. Lifting Speed with Load - 0.16 m/s
- 4. Lifting Speed without Load - 0.25 m/s
- 5. Lower Speed with / without load - 0.45 m/s
- 6. Max. Climbing ability with load, 5 Min Rating - 9 %
- 7. Max. Climbing ability without load, 5 Min Rating - 10 %
